Cohesive Fracture: Penalty Method¤

In this notebook, we simulate quasi-static crack propagation along an interface in a 3D plate using Cohesive law. This is an example of mixed-dimensional coupling where the energies are computed in domains which are dimensionally separate. In bulk which is a 3D domain and along the interface which a 2D domain.

Colab Setup (Install Dependencies)

# Only run this if we are in Google Colab
if 'google.colab' in str(get_ipython()):
    print("Installing dependencies using uv...")
    # Install uv if not available
    !pip install -q uv
    # Install system dependencies
    !apt-get install -qq gmsh
    # Use uv to install Python dependencies
    !uv pip install --system matplotlib meshio
    !uv pip install --system pyvista
    !uv pip install --system "git+https://github.com/smec-ethz/tatva-docs.git"

    import pyvista as pv

    pv.global_theme.jupyter_backend = 'static'
    pv.global_theme.notebook = True
    pv.start_xvfb()

    print("Installation complete!")
else:
    import pyvista as pv
    pv.global_theme.jupyter_backend = 'client'

import jax

jax.config.update("jax_enable_x64", True)  # use double-precision
jax.config.update("jax_persistent_cache_min_compile_time_secs", 0)

import os
from typing import NamedTuple

import equinox as eqx
import gmsh
import jax.numpy as jnp
import matplotlib.pyplot as plt
import meshio
import numpy as np
from jax import Array
from jax_autovmap import autovmap
from tatva import Mesh, Operator, element

The critical length for plain strain condition is given by:

\[L_\text{G} = 2\mu \Gamma/\pi(1-\nu)\sigma_{\infty}^2\]

where \(\mu\) is the shear modulus, \(\Gamma\) is the fracture energy, \(\nu\) is the Poisson's ratio, and \(\sigma_{\infty}\) is the stress at infinity. For plain strain condition, the effective Young's modulus is given by:

\[E_\text{eff} = \frac{E}{1-\nu^2}\]

where \(E\) is the Young's modulus and \(\nu\) is the Poisson's ratio. For a specimen stretched by a prestrain \(\epsilon\), the applied stress at infinity is given by:

\[\sigma_{\infty} = \epsilon /E_\text{eff}\]

Pre-crack plate under Mode I loading¤

We generate a plate with a pre-crack of length \(L_G\) and the cohesive interface lies at \(x \geq L_G\) and \(y=0\).

View mesh generation functions

def generate_unstructured_hex_fracture_3d(
    length: float,
    height: float,
    thickness: float,
    crack_tip_x: float,
    mesh_size_tip: float,
    mesh_size_far: float,
    work_dir: str = "../meshes",
):
    """
    Generates a 3D fracture assembly with an Unstructured HEXAHEDRAL mesh.

    Args:
        length: Total length of the block (L)
        height: Total height of the block (h)
        thickness: Thickness of the block (t)
        crack_tip_x: X-coordinate of the crack tip (a)
        mesh_size_tip: Desired mesh size near the crack tip (refined)
        mesh_size_far: Desired mesh size far from the crack tip (coarser)
        work_dir: Directory to store temporary mesh files
    Returns:
        mesh: The full 3D mesh of the half-block (Mesh object)
        interface_mesh: The mesh representing the crack interface (Mesh object)
        top_interface_nodes: Node indices on the top face of the interface
        bottom_interface_nodes: Node indices on the bottom face of the interface
        active_quads_top: Quad element indices on the top face of the interface
        active_quads_bottom: Quad element indices on the bottom face of the interface
    """

    if not os.path.exists(work_dir):
        os.makedirs(work_dir)

    filename = os.path.join(work_dir, "temp_half_block_hex.msh")

    gmsh.initialize()
    gmsh.model.add("half_block_hex")

    h_half = height / 2.0

    # Points: Bottom Face (y=0)
    p1 = gmsh.model.geo.addPoint(0, 0, 0, mesh_size_far)
    p4 = gmsh.model.geo.addPoint(0, 0, thickness, mesh_size_far)
    # x=crack_tip (Refined)
    pt1 = gmsh.model.geo.addPoint(crack_tip_x, 0, 0, mesh_size_tip)
    pt2 = gmsh.model.geo.addPoint(crack_tip_x, 0, thickness, mesh_size_tip)
    # x=L
    p2 = gmsh.model.geo.addPoint(length, 0, 0, mesh_size_tip)
    p3 = gmsh.model.geo.addPoint(length, 0, thickness, mesh_size_tip)

    # Points: Top Face (y=h/2)
    p5 = gmsh.model.geo.addPoint(0, h_half, 0, mesh_size_far)
    p8 = gmsh.model.geo.addPoint(0, h_half, thickness, mesh_size_far)
    # x=crack_tip (Refined)
    pt3 = gmsh.model.geo.addPoint(crack_tip_x, h_half, 0, mesh_size_far)
    pt4 = gmsh.model.geo.addPoint(crack_tip_x, h_half, thickness, mesh_size_far)
    # x=L
    p6 = gmsh.model.geo.addPoint(length, h_half, 0, mesh_size_far)
    p7 = gmsh.model.geo.addPoint(length, h_half, thickness, mesh_size_far)

    # Lines: Bottom
    l1 = gmsh.model.geo.addLine(p1, pt1)
    l2 = gmsh.model.geo.addLine(pt1, p2)
    l_right_b = gmsh.model.geo.addLine(p2, p3)
    l3 = gmsh.model.geo.addLine(p3, pt2)
    l4 = gmsh.model.geo.addLine(pt2, p4)
    l_left_b = gmsh.model.geo.addLine(p4, p1)
    l_crack_b = gmsh.model.geo.addLine(pt1, pt2) # Crack front

    # Lines: Top
    l5 = gmsh.model.geo.addLine(p5, pt3)
    l6 = gmsh.model.geo.addLine(pt3, p6)
    l_right_t = gmsh.model.geo.addLine(p6, p7)
    l7 = gmsh.model.geo.addLine(p7, pt4)
    l8 = gmsh.model.geo.addLine(pt4, p8)
    l_left_t = gmsh.model.geo.addLine(p8, p5)
    l_crack_t = gmsh.model.geo.addLine(pt3, pt4)

    # Lines: Vertical
    v1 = gmsh.model.geo.addLine(p1, p5)
    v_tip1 = gmsh.model.geo.addLine(pt1, pt3)
    v2 = gmsh.model.geo.addLine(p2, p6)
    v3 = gmsh.model.geo.addLine(p3, p7)
    v_tip2 = gmsh.model.geo.addLine(pt2, pt4)
    v4 = gmsh.model.geo.addLine(p4, p8)

    # Surfaces (Pre/Post Crack Split)
    loop_if_1 = gmsh.model.geo.addCurveLoop([l1, l_crack_b, l4, l_left_b])
    s_if_1 = gmsh.model.geo.addPlaneSurface([loop_if_1])

    loop_if_2 = gmsh.model.geo.addCurveLoop([l2, l_right_b, l3, -l_crack_b])
    s_if_2 = gmsh.model.geo.addPlaneSurface([loop_if_2])

    loop_top_1 = gmsh.model.geo.addCurveLoop([l5, l_crack_t, l8, l_left_t])
    s_top_1 = gmsh.model.geo.addPlaneSurface([loop_top_1])

    loop_top_2 = gmsh.model.geo.addCurveLoop([l6, l_right_t, l7, -l_crack_t])
    s_top_2 = gmsh.model.geo.addPlaneSurface([loop_top_2])

    # Sides
    s_left = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l_left_b, v1, -l_left_t, -v4])])
    s_right = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l_right_b, v3, -l_right_t, -v2])])
    s_front_1 = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l1, v_tip1, -l5, -v1])])
    s_front_2 = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l2, v2, -l6, -v_tip1])])
    s_back_1 = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l4, v4, -l8, -v_tip2])])
    s_back_2 = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l3, v_tip2, -l7, -v3])])
    s_mid = gmsh.model.geo.addPlaneSurface([gmsh.model.geo.addCurveLoop([l_crack_b, v_tip2, -l_crack_t, -v_tip1])])

    # Volumes
    sl1 = gmsh.model.geo.addSurfaceLoop([s_if_1, s_top_1, s_left, s_front_1, s_back_1, s_mid])
    vol1 = gmsh.model.geo.addVolume([sl1])
    sl2 = gmsh.model.geo.addSurfaceLoop([s_if_2, s_top_2, s_right, s_front_2, s_back_2, s_mid])
    vol2 = gmsh.model.geo.addVolume([sl2])

    gmsh.model.geo.synchronize()

    gmsh.model.addPhysicalGroup(2, [s_if_1, s_if_2], 1, name="interface_surface")
    gmsh.model.addPhysicalGroup(3, [vol1, vol2], 2, name="top_domain")
    gmsh.option.setNumber("Mesh.SubdivisionAlgorithm", 2)

    gmsh.model.mesh.generate(3)
    gmsh.write(filename)
    gmsh.finalize()

    _m = meshio.read(filename)
    if os.path.exists(filename):
        os.remove(filename)

    points_top = _m.points # (N, 3)

    hex_top = _m.cells_dict["hexahedron"]

    interface_surf_idx = _m.cell_sets_dict["interface_surface"]["quad"]
    all_interface_quads_top = _m.cells_dict["quad"][interface_surf_idx]

    points_bottom = points_top.copy()
    points_bottom[:, 1] *= -1 # Flip Y
    points_bottom[:, 1] -= 1e-7

    N_half = len(points_top)

    hex_bottom = hex_top + N_half

    hex_bottom[:, [1, 3]] = hex_bottom[:, [3, 1]]
    hex_bottom[:, [5, 7]] = hex_bottom[:, [7, 5]]

    coords = np.vstack([points_top, points_bottom])
    elements = np.vstack([hex_top, hex_bottom])

    quad_coords = points_top[all_interface_quads_top]
    centroids_x = np.mean(quad_coords[:, :, 0], axis=1)

    active_mask = centroids_x >= (crack_tip_x - 1e-9)

    active_quads_top = all_interface_quads_top[active_mask]
    active_quads_bottom = active_quads_top + N_half

    unique_nodes_bot, inverse_indices = jnp.unique(active_quads_bottom, return_inverse=True)

    interface_coords = coords[unique_nodes_bot]
    interface_connectivity = inverse_indices.reshape(active_quads_bottom.shape)

    interface_mesh = Mesh(interface_coords, interface_connectivity)

    bottom_interface_nodes = unique_nodes_bot
    top_interface_nodes = bottom_interface_nodes - N_half
    mesh = Mesh(coords, elements)

    return mesh, interface_mesh, top_interface_nodes, bottom_interface_nodes, active_quads_top, active_quads_bottom

Now, we define the material parameters and geometic parameters.

prestrain = 0.1
nu = 0.35

E = 106e3  # N/m^2
lmbda = nu * E / ((1 + nu) * (1 - 2 * nu))
mu = E / (2 * (1 + nu))

Gamma = 15  # J/m^2
sigma_c = 20e3  # N/m^2

print(f"mu: {mu} N/m^2")
print(f"lmbda: {lmbda} N/m^2")

sigma_inf = prestrain * E

L_G = 2 * mu * Gamma / (jnp.pi * (1 - nu) * sigma_inf**2)
print(f"L_G: {L_G} m")

mu: 39259.259259259255 N/m^2
lmbda: 91604.93827160491 N/m^2
L_G: 0.0051332024864342955 m

Lx = 10 * L_G
Ly = 2 * L_G
Lz = 1 * L_G

(
    mesh,
    interface_mesh,
    top_interface_nodes,
    bottom_interface_nodes,
    top_interface_elements,
    bottom_interface_elements,
) = generate_unstructured_hex_fracture_3d(
    length=Lx,
    height=Ly,
    thickness=Lz,
    crack_tip_x=crack_length,
    mesh_size_tip=2e-3,
    mesh_size_far=4e-3,
)


n_nodes = mesh.coords.shape[0]
n_dofs_per_node = 3
n_dofs = n_dofs_per_node * n_nodes

Output

Info : Meshing 1D... Info : [ 0%] Meshing curve 1 (Line) Info : [ 10%] Meshing curve 2 (Line) Info : [ 20%] Meshing curve 3 (Line) Info : [ 20%] Meshing curve 4 (Line) Info : [ 30%] Meshing curve 5 (Line) Info : [ 30%] Meshing curve 6 (Line) Info : [ 40%] Meshing curve 7 (Line) Info : [ 40%] Meshing curve 8 (Line) Info : [ 50%] Meshing curve 9 (Line) Info : [ 50%] Meshing curve 10 (Line) Info : [ 60%] Meshing curve 11 (Line) Info : [ 60%] Meshing curve 12 (Line) Info : [ 70%] Meshing curve 13 (Line) Info : [ 70%] Meshing curve 14 (Line) Info : [ 80%] Meshing curve 15 (Line) Info : [ 80%] Meshing curve 16 (Line) Info : [ 90%] Meshing curve 17 (Line) Info : [ 90%] Meshing curve 18 (Line) Info : [100%] Meshing curve 19 (Line) Info : [100%] Meshing curve 20 (Line) Info : Done meshing 1D (Wall 0.00359308s, CPU 0.004157s) Info : Meshing 2D... Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay) Info : [ 10%] Meshing surface 2 (Plane, Frontal-Delaunay) Info : [ 20%] Meshing surface 3 (Plane, Frontal-Delaunay) Info : [ 30%] Meshing surface 4 (Plane, Frontal-Delaunay) Info : [ 40%] Meshing surface 5 (Plane, Frontal-Delaunay) Info : [ 50%] Meshing surface 6 (Plane, Frontal-Delaunay) Info : [ 60%] Meshing surface 7 (Plane, Frontal-Delaunay) Info : [ 70%] Meshing surface 8 (Plane, Frontal-Delaunay) Info : [ 80%] Meshing surface 9 (Plane, Frontal-Delaunay) Info : [ 90%] Meshing surface 10 (Plane, Frontal-Delaunay) Info : [100%] Meshing surface 11 (Plane, Frontal-Delaunay) Info : Done meshing 2D (Wall 0.00530414s, CPU 0.004784s) Info : Meshing 3D... Info : 3D Meshing 2 volumes with 1 connected component Info : Tetrahedrizing 249 nodes... Info : Done tetrahedrizing 257 nodes (Wall 0.00191356s, CPU 0.002098s) Info : Reconstructing mesh... Info : - Creating surface mesh Info : - Identifying boundary edges Info : - Recovering boundary Info : Done reconstructing mesh (Wall 0.00425647s, CPU 0.00351s) Info : Found volume 1 Info : Found volume 2 Info : It. 0 - 0 nodes created - worst tet radius 1.19778 (nodes removed 0 0) Info : 3D refinement terminated (255 nodes total): Info : - 0 Delaunay cavities modified for star shapeness Info : - 0 nodes could not be inserted Info : - 680 tetrahedra created in 0.000347617 sec. (1956175 tets/s) Info : 0 node relocations Info : Done meshing 3D (Wall 0.00848098s, CPU 0.007885s) Info : Optimizing mesh... Info : Optimizing volume 1 Info : Optimization starts (volume = 2.43466e-07) with worst = 0.0504542 / average = 0.777641: Info : 0.00 < quality < 0.10 : 2 elements Info : 0.10 < quality < 0.20 : 0 elements Info : 0.20 < quality < 0.30 : 2 elements Info : 0.30 < quality < 0.40 : 0 elements Info : 0.40 < quality < 0.50 : 3 elements Info : 0.50 < quality < 0.60 : 1 elements Info : 0.60 < quality < 0.70 : 29 elements Info : 0.70 < quality < 0.80 : 43 elements Info : 0.80 < quality < 0.90 : 52 elements Info : 0.90 < quality < 1.00 : 30 elements Info : 4 edge swaps, 0 node relocations (volume = 2.43466e-07): worst = 0.479486 / average = 0.794093 (Wall 6.8234e-05s, CPU 9.5e-05s) Info : No ill-shaped tets in the mesh :-) Info : 0.00 < quality < 0.10 : 0 elements Info : 0.10 < quality < 0.20 : 0 elements Info : 0.20 < quality < 0.30 : 0 elements Info : 0.30 < quality < 0.40 : 0 elements Info : 0.40 < quality < 0.50 : 3 elements Info : 0.50 < quality < 0.60 : 1 elements Info : 0.60 < quality < 0.70 : 31 elements Info : 0.70 < quality < 0.80 : 41 elements Info : 0.80 < quality < 0.90 : 50 elements Info : 0.90 < quality < 1.00 : 32 elements Info : Optimizing volume 2 Info : Optimization starts (volume = 1.10912e-06) with worst = 0.0625991 / average = 0.673012: Info : 0.00 < quality < 0.10 : 10 elements Info : 0.10 < quality < 0.20 : 7 elements Info : 0.20 < quality < 0.30 : 12 elements Info : 0.30 < quality < 0.40 : 16 elements Info : 0.40 < quality < 0.50 : 45 elements Info : 0.50 < quality < 0.60 : 49 elements Info : 0.60 < quality < 0.70 : 148 elements Info : 0.70 < quality < 0.80 : 85 elements Info : 0.80 < quality < 0.90 : 76 elements Info : 0.90 < quality < 1.00 : 70 elements Info : 27 edge swaps, 0 node relocations (volume = 1.10912e-06): worst = 0.309952 / average = 0.698742 (Wall 0.000326186s, CPU 0.000311s) Info : No ill-shaped tets in the mesh :-) Info : 0.00 < quality < 0.10 : 0 elements Info : 0.10 < quality < 0.20 : 0 elements Info : 0.20 < quality < 0.30 : 0 elements Info : 0.30 < quality < 0.40 : 23 elements Info : 0.40 < quality < 0.50 : 48 elements Info : 0.50 < quality < 0.60 : 50 elements Info : 0.60 < quality < 0.70 : 139 elements Info : 0.70 < quality < 0.80 : 90 elements Info : 0.80 < quality < 0.90 : 77 elements Info : 0.90 < quality < 1.00 : 70 elements Info : Done optimizing mesh (Wall 0.000840244s, CPU 0.000912s) Info : Refining mesh... Info : Meshing order 2 (curvilinear on)... Info : [ 0%] Meshing curve 1 order 2 Info : [ 10%] Meshing curve 2 order 2 Info : [ 10%] Meshing curve 3 order 2 Info : [ 10%] Meshing curve 4 order 2 Info : [ 20%] Meshing curve 5 order 2 Info : [ 20%] Meshing curve 6 order 2 Info : [ 20%] Meshing curve 7 order 2 Info : [ 30%] Meshing curve 8 order 2 Info : [ 30%] Meshing curve 9 order 2 Info : [ 30%] Meshing curve 10 order 2 Info : [ 40%] Meshing curve 11 order 2 Info : [ 40%] Meshing curve 12 order 2 Info : [ 40%] Meshing curve 13 order 2 Info : [ 40%] Meshing curve 14 order 2 Info : [ 50%] Meshing curve 15 order 2 Info : [ 50%] Meshing curve 16 order 2 Info : [ 50%] Meshing curve 17 order 2 Info : [ 60%] Meshing curve 18 order 2 Info : [ 60%] Meshing curve 19 order 2 Info : [ 60%] Meshing curve 20 order 2 Info : [ 70%] Meshing surface 1 order 2 Info : [ 70%] Meshing surface 2 order 2 Info : [ 70%] Meshing surface 3 order 2 Info : [ 70%] Meshing surface 4 order 2 Info : [ 80%] Meshing surface 5 order 2 Info : [ 80%] Meshing surface 6 order 2 Info : [ 80%] Meshing surface 7 order 2 Info : [ 90%] Meshing surface 8 order 2 Info : [ 90%] Meshing surface 9 order 2 Info : [ 90%] Meshing surface 10 order 2 Info : [100%] Meshing surface 11 order 2 Info : [100%] Meshing volume 1 order 2 Info : [100%] Meshing volume 2 order 2 Info : Surface mesh: worst distortion = 1 (0 elements in ]0, 0.2]); worst gamma = 0.702659 Info : Volume mesh: worst distortion = 1 (0 elements in ]0, 0.2]) Info : Done meshing order 2 (Wall 0.00286796s, CPU 0.0023s) Info : Done refining mesh (Wall 0.00733381s, CPU 0.006798s) Info : 3613 nodes 4347 elements Info : Writing '../meshes/temp_half_block_hex.msh'... Info : Done writing '../meshes/temp_half_block_hex.msh'

grid = pv.UnstructuredGrid(
    np.hstack((np.full((mesh.elements.shape[0], 1), 8), mesh.elements)).flatten(),
    np.full(mesh.elements.shape[0], pv.CellType.HEXAHEDRON),
    np.array(mesh.coords)
)

grid_interface = pv.UnstructuredGrid(
    np.hstack((np.full((interface_mesh.elements.shape[0], 1), 4), interface_mesh.elements)).flatten(),
    np.full(interface_mesh.elements.shape[0], pv.CellType.QUAD),
    np.array(interface_mesh.coords)
)

pl = pv.Plotter(window_size=(800, 400))
pl.add_mesh(grid, show_edges=True, color="lightgray",  smooth_shading=False, opacity=1)
pl.add_mesh(grid_interface, show_edges=True, color="red",  smooth_shading=False)
pl.view_isometric()
pl.show()

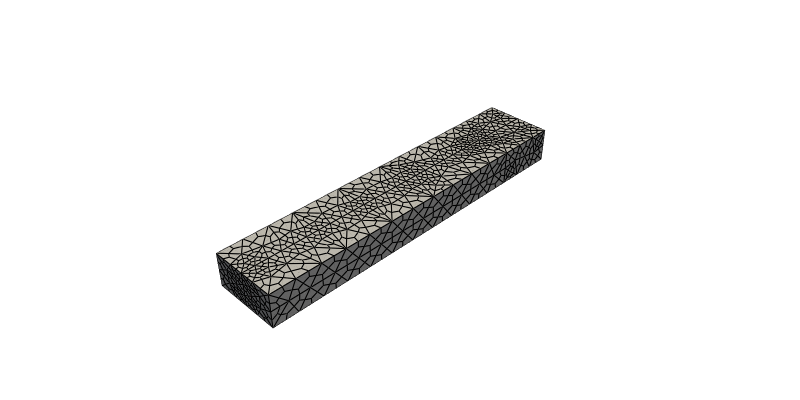

Click the image above to mesh in full screen.

We can now create the mesh and tatva.Operator to integrate the energy. We define the Element 8-node Hexahedron. One can implement any new H\(^1\) finite-element.

Define the 8-node hexahedral element

class Hexahedron8(element.Element):
    """A 8-node linear hexahedral element."""

    a = 1 / jnp.sqrt(3)

    # 2x2x2 Gauss Quadrature Rule
    quad_points = jnp.array(
        [
            [-a, -a, -a],
            [a, -a, -a],
            [a, a, -a],
            [-a, a, -a],
            [-a, -a, a],
            [a, -a, a],
            [a, a, a],
            [-a, a, a],
        ]
    )

    # Weights are all 1.0 for this rule (since interval is [-1, 1])
    quad_weights = jnp.ones(8)

    def shape_function(self, xi: Array) -> Array:
        """Returns the shape functions evaluated at the local coordinates (xi, eta, zeta)."""
        xi, eta, zeta = xi
        return (1 / 8) * jnp.array(
            [
                (1 - xi) * (1 - eta) * (1 - zeta),
                (1 + xi) * (1 - eta) * (1 - zeta),
                (1 + xi) * (1 + eta) * (1 - zeta),
                (1 - xi) * (1 + eta) * (1 - zeta),
                (1 - xi) * (1 - eta) * (1 + zeta),
                (1 + xi) * (1 - eta) * (1 + zeta),
                (1 + xi) * (1 + eta) * (1 + zeta),
                (1 - xi) * (1 + eta) * (1 + zeta),
            ]
        )

    def shape_function_derivative(self, xi: Array) -> Array:
        """Returns the derivative of the shape functions."""
        # shape (3, 8) -> (dim, n_nodes)
        xi, eta, zeta = xi
        return (1 / 8) * jnp.array(
            [
                [
                    -(1 - eta) * (1 - zeta),
                    (1 - eta) * (1 - zeta),
                    (1 + eta) * (1 - zeta),
                    -(1 + eta) * (1 - zeta),
                    -(1 - eta) * (1 + zeta),
                    (1 - eta) * (1 + zeta),
                    (1 + eta) * (1 + zeta),
                    -(1 + eta) * (1 + zeta),
                ],
                [
                    -(1 - xi) * (1 - zeta),
                    -(1 + xi) * (1 - zeta),
                    (1 + xi) * (1 - zeta),
                    (1 - xi) * (1 - zeta),
                    -(1 - xi) * (1 + zeta),
                    -(1 + xi) * (1 + zeta),
                    (1 + xi) * (1 + zeta),
                    (1 - xi) * (1 + zeta),
                ],
                [
                    -(1 - xi) * (1 - eta),
                    -(1 + xi) * (1 - eta),
                    -(1 + xi) * (1 + eta),
                    -(1 - xi) * (1 + eta),
                    (1 - xi) * (1 - eta),
                    (1 + xi) * (1 - eta),
                    (1 + xi) * (1 + eta),
                    (1 - xi) * (1 + eta),
                ],
            ]
        )

hex = Hexahedron8()
op = Operator(mesh, hex)

Defining the total potential energy¤

Defining elastic strain energy¤

We define a function to compute the linear elastic energy density based on the displacement gradients \(\nabla u\).

\[ \Psi(x) = \sigma(x) : \epsilon(x) \]

where \(\sigma\) is the stress tensor and \(\epsilon\) is the strain tensor.

\[ \sigma = \lambda \text{tr}(\epsilon) I + 2\mu \epsilon \]

and

\[ \epsilon = \frac{1}{2} (\nabla u + \nabla u^T) \]

The elastic strain energy density is then given by:

\[ \Psi_{elastic}(u) = \int_{\Omega} \Psi(x) dV \]

@autovmap(grad_u=2)
def compute_strain(grad_u):
    return 0.5 * (grad_u + grad_u.T)


@autovmap(eps=2, mu=0, lmbda=0)
def compute_stress(eps, mu, lmbda):
    I = jnp.eye(3)
    return 2 * mu * eps + lmbda * jnp.trace(eps) * I


@autovmap(grad_u=2, mu=0, lmbda=0)
def strain_energy(grad_u, mu, lmbda):
    eps = compute_strain(grad_u)
    sigma = compute_stress(eps, mu, lmbda)
    return 0.5 * jnp.einsum("ij,ij->", sigma, eps)


@jax.jit
def total_strain_energy(u_flat):
    u = u_flat.reshape(-1, n_dofs_per_node)
    u_grad = op.grad(u)
    energy_density = strain_energy(u_grad, mu, lmbda)
    return op.integrate(energy_density)

Defining total fracture energy¤

The total potential energy \(\Psi\) is the sum of the elastic strain energy \(\Psi_{elastic}\) and the cohesive energy \(\Psi_{cohesive}\).

\[\Psi(u)=\Psi_{elastic}(u)+\Psi_{cohesive}(u)\]

The cohesive energy is defined as:

\[\Psi_{cohesive}(u)= \int_{\Gamma_\text{coh}} \psi(\delta(\boldsymbol{u})) dA\]

where

\(\Gamma_{coh}\) is the cohesive interface.
\(\boldsymbol{\delta}(\boldsymbol{u}) = \boldsymbol{u}^+ - \boldsymbol{u}^-\) is the displacement jump across the interface.
\(\phi(\boldsymbol{\delta})\) is the cohesive potential, which defines the energy-separation relationship.

Defining the effective opening¤

Now, we proceed with defining the cohesive potential in terms of the jump displacement

\[ [\![ \boldsymbol{u} ]\!] = \boldsymbol{u}_1 - \boldsymbol{u}_2 \]

where \(\boldsymbol{u}_1\) and \(\boldsymbol{u}_2\) are the displacements of the nodes of the upper and lower interface respectively. The effective opening is then given as:

\[ \delta = \sqrt{[\![ u ]\!]_t^2 + [\![ u_ ]\!]_n^2} \]

where \([\![ u ]\!]_t\) and \([\![ u ]\!]_n\) are the tangential and normal components of the jump displacement with respect to the fracture plane or the interface. Since the fracture plane or the interface is parallel to the \(x\) axis and we assume that it remains so throughout the simulation, we can then write:

\[ [\![ u ]\!]_t = [\![ \boldsymbol{u} ]\!]\cdot{}\boldsymbol{e}_x \]

and

\[ [\![ u ]\!]_n = [\![ \boldsymbol{u} ]\!]\cdot{}\boldsymbol{e}_y \]

where \(\boldsymbol{e}_x\) and \(\boldsymbol{e}_y\) are the unit vectors in the \(x\) and \(y\) directions respectively.

Defining the traction-separation law¤

For this example, we assume that the cohesive potential is given by the exponential cohesive potential.

\[ \phi = \Gamma \left(-\frac{\delta}{\delta_c} \exp\left(-\frac{\delta}{\delta_c}\right)\right) \]

where \(\Gamma\) is the fracture energy and \(\delta_c\) is the critical opening. The critical opening for the exponential cohesive potential is given by:

\[ \delta_c = \frac{\Gamma \exp(-1)}{\sigma_c} \]

It is the opening at which the cohesive traction is equal to the critical stress.

penalty = 1e2
normal_vector = jnp.array([0.0, 1.0, 0.0])  # Y-direction
beta = 0.0  # No tangential contribution

@jax.jit
def safe_sqrt(x):
    return jnp.sqrt(jnp.where(x > 0.0, x, 0.0))



@autovmap(jump=1)
def compute_opening(jump: Array) -> float:
    """
    Compute the opening of the cohesive element.
    Args:
        jump: The jump in the displacement field.
    Returns:
        The opening of the cohesive element.
    """
    delta_n = jnp.dot(jump, normal_vector)
    delta_t_vec = jump - delta_n * normal_vector
    delta_t = safe_sqrt(jnp.dot(delta_t_vec, delta_t_vec))
    opening = safe_sqrt(delta_n ** 2 + beta * delta_t ** 2)
    return opening



def exponential_potential(delta, Gamma, delta_c):
    return Gamma * (1 - (1 + (delta / delta_c)) * (jnp.exp(-delta / delta_c)))


exponential_traction = jax.jacrev(exponential_potential)


@autovmap(jump=1, delta_max=0)
def exponential_cohesive_energy(
    jump: Array,
    delta_max: float,
    Gamma: float,
    sigma_c: float,
    penalty: float,
    delta_threshold: float = 1e-8,
) -> float:
    """
    Compute the cohesive energy for a given jump.
    Args:
        jump: The jump in the displacement field.
        Gamma: Fracture energy of the material.
        sigma_c: The critical strength of the material.
        penalty: The penalty parameter for penalizing the interpenetration.
        delta_threshold: The threshold for the delta parameter.
    Returns:
        The cohesive energy.
    """
    delta = compute_opening(jump)
    delta_c = (Gamma * jnp.exp(-1)) / sigma_c

    def true_fun(delta):
        def loading(delta):
            return exponential_potential(delta, Gamma, delta_c)

        def unloading(delta):
            psi_max = exponential_potential(delta_max, Gamma, delta_c)
            T_max = exponential_traction(delta_max, Gamma, delta_c)
            T_current = T_max * (delta) / delta_max
            psi_current = psi_max - 0.5 * (T_max + T_current) * (delta_max - delta)
            return psi_current

        return jax.lax.cond(delta > delta_max, loading, unloading, delta)

    def false_fun(delta):
        return 0.5 * penalty * delta**2

    return jax.lax.cond(delta > delta_threshold, true_fun, false_fun, delta)

To ease the integration along the cohesive interface, we will define a new mesh that contains the Quadrilateral elements from one of the two interfaces. Since the two interfaces are discretized using the same number of elements, and occupy the same spatial domain, we can use any one of the two to perform the integration.

Define the 4-node quadrilateral element on the interface

class Quad4Manifold(element.Quad4):
    """A 4-node linear quadrilateral element on a 2D manifold embedded in 3D space."""

    def get_jacobian(self, xi: Array, nodal_coords: Array) -> tuple[Array, Array]:
        dNdr = self.shape_function_derivative(xi)
        J = dNdr @ nodal_coords  # shape (2, 2) or (2, 3)
        G = J @ J.T  # shape (2, 2)
        detJ = safe_sqrt(jnp.linalg.det(G))
        return J, detJ

    def gradient(self, xi: Array, nodal_values: Array, nodal_coords: Array) -> Array:
        dNdr = self.shape_function_derivative(xi)  # shape (2, 3)
        J, _ = self.get_jacobian(xi, nodal_coords)  # shape (2, 3)

        G_inv = jnp.linalg.inv(J @ J.T)  # shape (2, 2)
        J_plus = J.T @ G_inv  # shape (3, 2)

        dudxi = dNdr @ nodal_values  # shape (2, n_values)
        return J_plus @ dudxi  # shape (3, n_values)

quad4 = Quad4Manifold()
interface_op = Operator(interface_mesh, quad4)

Now we can use the interface_op to compute the total cohesive energy along the interface.

@jax.jit
def total_cohesive_energy(u_flat: Array, delta_max: Array) -> float:
    u = u_flat.reshape(-1, n_dofs_per_node)
    jump = u.at[top_interface_nodes, :].get() - u.at[bottom_interface_nodes, :].get()
    jump_quad = interface_op.eval(jump)
    cohesive_energy_density = exponential_cohesive_energy(
        jump_quad, delta_max, Gamma, sigma_c, penalty
    )
    return interface_op.integrate(cohesive_energy_density)

@jax.jit
def total_energy(u_flat: Array, delta_max: Array) -> float:
    u = u_flat.reshape(-1, n_dofs_per_node)
    elastic_strain_energy = total_strain_energy(u)
    cohesive_energy = total_cohesive_energy(u, delta_max)
    return elastic_strain_energy + cohesive_energy

Boundary and Loading condition¤

We now apply boundary and loading conditions

z_max = jnp.max(mesh.coords[:, 2])
z_min = jnp.min(mesh.coords[:, 2])
y_max = jnp.max(mesh.coords[:, 1])
y_min = jnp.min(mesh.coords[:, 1])
x_min = jnp.min(mesh.coords[:, 0])
height = y_max - y_min


upper_nodes = jnp.where(jnp.isclose(mesh.coords[:, 1], y_max))[0]
lower_nodes = jnp.where(jnp.isclose(mesh.coords[:, 1], y_min))[0]
left_nodes = jnp.where(jnp.isclose(mesh.coords[:, 0], x_min))[0]
front_nodes = jnp.where(jnp.isclose(mesh.coords[:, 2], z_min))[0]
back_nodes = jnp.where(jnp.isclose(mesh.coords[:, 2], z_max))[0]

applied_disp = 2.25 * prestrain * height

fixed_dofs = jnp.concatenate(
    [
        n_dofs_per_node * upper_nodes,
        n_dofs_per_node * upper_nodes + 1,
        n_dofs_per_node * upper_nodes + 2,

        n_dofs_per_node * lower_nodes,
        n_dofs_per_node * lower_nodes + 1,
        n_dofs_per_node * lower_nodes + 2,

        n_dofs_per_node * left_nodes,
        n_dofs_per_node * front_nodes + 2,
        n_dofs_per_node * back_nodes + 2,
    ]
)



prescribed_values = jnp.zeros(n_dofs).at[n_dofs_per_node * upper_nodes].set(0.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * upper_nodes + 1].set(applied_disp / 2.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * upper_nodes + 2].set(0.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * lower_nodes].set(0.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * lower_nodes + 1].set(-applied_disp / 2.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * lower_nodes + 2].set(0.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * left_nodes].set(0.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * front_nodes + 2].set(0.0)
prescribed_values = prescribed_values.at[n_dofs_per_node * back_nodes + 2].set(0.0)


free_dofs = jnp.setdiff1d(jnp.arange(n_dofs), fixed_dofs)

Using Matrix-free solvers¤

In this example, we use matrix-free solver. To enforce boundary conditions, we use Projected Conjugate Gradient

# creating functions to compute the gradient and
gradient = jax.jacrev(total_energy)


# create a function to compute the JVP product
@eqx.filter_jit
def compute_tangent(du, u_prev, gradient):
    du_projected = du.at[fixed_dofs].set(0)
    tangent = jax.jvp(gradient, (u_prev,), (du_projected,))[1]
    tangent = tangent.at[fixed_dofs].set(0)
    return tangent

Define the Netwon-Krylov solvers (Newton and Conjugate Gradient)

from functools import partial


@eqx.filter_jit
def conjugate_gradient(A, b, atol=1e-8, max_iter=100):
    iiter = 0

    def body_fun(state):
        b, p, r, rsold, x, iiter = state
        Ap = A(p)
        alpha = rsold / jnp.vdot(p, Ap)
        x = x + jnp.dot(alpha, p)
        r = r - jnp.dot(alpha, Ap)
        rsnew = jnp.vdot(r, r)
        p = r + (rsnew / rsold) * p
        rsold = rsnew
        iiter = iiter + 1
        return (b, p, r, rsold, x, iiter)

    def cond_fun(state):
        b, p, r, rsold, x, iiter = state
        return jnp.logical_and(jnp.sqrt(rsold) > atol, iiter < max_iter)

    x = jnp.full_like(b, fill_value=0.0)
    r = b - A(x)
    p = r
    rsold = jnp.vdot(r, p)

    b, p, r, rsold, x, iiter = jax.lax.while_loop(
        cond_fun, body_fun, (b, p, r, rsold, x, iiter)
    )
    return x, iiter



@eqx.filter_jit
def newton_krylov_solver(
    u_init,
    fext,
    gradient,
    compute_tangent,
    fixed_dofs,
):
    fint_init = gradient(u_init)
    res_init = (fext - fint_init).at[fixed_dofs].set(0)
    norm_res_init = jnp.linalg.norm(res_init)

    init_val = (u_init, 0, norm_res_init, fint_init)

    def cond_fun(state):
        u, iiter, norm_res, _ = state
        return (norm_res > 1e-8) & (iiter < 200)

    def body_fun(state):
        u, iiter, norm_res, fint = state

        residual = (fext - fint).at[fixed_dofs].set(0)
        A = eqx.Partial(compute_tangent, u_prev=u, gradient=gradient)

        du, _ = conjugate_gradient(A=A, b=residual, atol=1e-8, max_iter=100)

        u_next = u + du

        fint_next = gradient(u_next)
        residual_next = (fext - fint_next).at[fixed_dofs].set(0)
        norm_res_next = jnp.linalg.norm(residual_next)

        return (u_next, iiter + 1, norm_res_next, fint_next)

    final_u, final_iiter, final_norm, _ = jax.lax.while_loop(cond_fun, body_fun, init_val)
    jax.debug.print("  Residual: {res:.2e}", res=final_norm)

    return final_u, final_norm

We define the initial conditions.

u_prev = jnp.zeros(n_dofs)
fext = jnp.zeros(n_dofs)

jump = (
    u_prev.reshape(-1, n_dofs_per_node).at[top_interface_nodes, :].get()
    - u_prev.reshape(-1, n_dofs_per_node).at[bottom_interface_nodes, :].get()
)
jump_quad = interface_op.eval(jump)
delta_maxs_prev = compute_opening(jump_quad)

We divided the total loading into 300 steps.

force_on_top = []
displacement_on_top = []
u_per_step = []

energies = {}
energies["elastic"] = []
energies["cohesive"] = []

delta_maxs_per_step = []

force_on_top.append(0)
displacement_on_top.append(0)
u_per_step.append(u_prev.reshape(n_nodes, n_dofs_per_node))

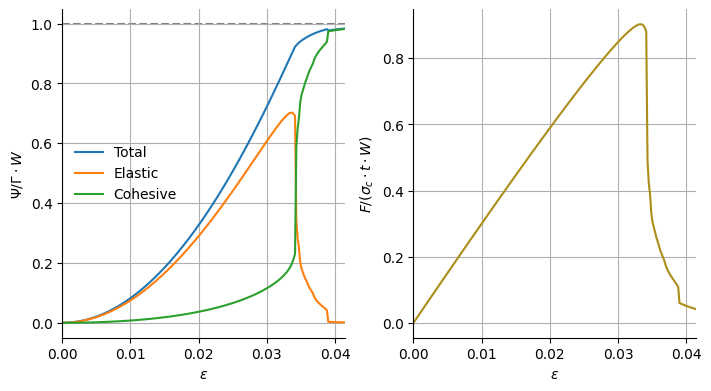

energies["elastic"].append(
    total_strain_energy(u_prev.reshape(n_nodes, n_dofs_per_node))
)
energies["cohesive"].append(
    total_cohesive_energy(u_prev.reshape(n_nodes, n_dofs_per_node), delta_maxs_prev)
)

du_total = prescribed_values / n_steps  # displacement increment

error_per_step = []

for step in range(n_steps):
    print(f"Step {step + 1}/{n_steps}")
    if step < n_steps:
        u_prev = u_prev.at[fixed_dofs].add(du_total[fixed_dofs])

    gradient_partial = eqx.Partial(gradient, delta_max=delta_maxs_prev)

    u_new, rnorm = newton_krylov_solver(
        u_prev,
        fext,
        gradient_partial,
        compute_tangent,
        fixed_dofs,
    )

    u_prev = u_new

    force_on_top.append(jnp.sum(gradient(u_prev, delta_maxs_prev)[n_dofs_per_node * upper_nodes + 1]))
    displacement_on_top.append(jnp.mean(u_prev[n_dofs_per_node * upper_nodes + 1]))
    u_per_step.append(u_prev.reshape(n_nodes, n_dofs_per_node))
    energies["elastic"].append(
        total_strain_energy(u_prev.reshape(n_nodes, n_dofs_per_node))
    )
    energies["cohesive"].append(
        total_cohesive_energy(u_prev.reshape(n_nodes, n_dofs_per_node), delta_maxs_prev)
    )
    error_per_step.append(rnorm)

    jump = (
            u_per_step[step].at[top_interface_nodes, :].get()
            - u_per_step[step].at[bottom_interface_nodes, :].get()
    )
    jump_quad = interface_op.eval(jump).squeeze()
    openings = compute_opening(jump_quad)
    delta_maxs = jnp.maximum(delta_maxs_prev, openings)
    delta_maxs_per_step.append(delta_maxs)

u_solution = u_prev.reshape(n_nodes, n_dofs_per_node)

Output

Step 1/300 Residual: 9.78e-09 Step 2/300 Residual: 9.59e-09 Step 3/300 Residual: 9.91e-09 Step 4/300 Residual: 9.74e-09 Step 5/300 Residual: 9.75e-09 Step 6/300 Residual: 9.91e-09 Step 7/300 Residual: 9.90e-09 Step 8/300 Residual: 9.91e-09 Step 9/300 Residual: 9.81e-09 Step 10/300 Residual: 9.56e-09 Step 11/300 Residual: 9.94e-09 Step 12/300 Residual: 9.29e-09 Step 13/300 Residual: 9.83e-09 Step 14/300 Residual: 9.66e-09 Step 15/300 Residual: 9.11e-09 Step 16/300 Residual: 9.65e-09 Step 17/300 Residual: 9.57e-09 Step 18/300 Residual: 9.71e-09 Step 19/300 Residual: 9.98e-09 Step 20/300 Residual: 9.70e-09 Step 21/300 Residual: 9.34e-09 Step 22/300 Residual: 9.60e-09 Step 23/300 Residual: 9.83e-09 Step 24/300 Residual: 9.82e-09 Step 25/300 Residual: 9.53e-09 Step 26/300 Residual: 9.92e-09 Step 27/300 Residual: 9.90e-09 Step 28/300 Residual: 9.95e-09 Step 29/300 Residual: 9.34e-09 Step 30/300 Residual: 9.46e-09 Step 31/300 Residual: 9.24e-09 Step 32/300 Residual: 9.67e-09 Step 33/300 Residual: 9.53e-09 Step 34/300 Residual: 9.81e-09 Step 35/300 Residual: 9.61e-09 Step 36/300 Residual: 9.48e-09 Step 37/300 Residual: 9.97e-09 Step 38/300 Residual: 9.09e-09 Step 39/300 Residual: 9.64e-09 Step 40/300 Residual: 9.93e-09 Step 41/300 Residual: 9.84e-09 Step 42/300 Residual: 9.81e-09 Step 43/300 Residual: 9.43e-09 Step 44/300 Residual: 9.78e-09 Step 45/300 Residual: 9.64e-09 Step 46/300 Residual: 9.82e-09 Step 47/300 Residual: 9.87e-09 Step 48/300 Residual: 9.77e-09 Step 49/300 Residual: 9.76e-09 Step 50/300 Residual: 9.72e-09 Step 51/300 Residual: 9.03e-09 Step 52/300 Residual: 9.70e-09 Step 53/300 Residual: 9.58e-09 Step 54/300 Residual: 9.44e-09 Step 55/300 Residual: 9.97e-09 Step 56/300 Residual: 9.84e-09 Step 57/300 Residual: 9.99e-09 Step 58/300 Residual: 9.74e-09 Step 59/300 Residual: 9.60e-09 Step 60/300 Residual: 9.77e-09 Step 61/300 Residual: 9.49e-09 Step 62/300 Residual: 9.81e-09 Step 63/300 Residual: 9.99e-09 Step 64/300 Residual: 9.35e-09 Step 65/300 Residual: 9.92e-09 Step 66/300 Residual: 9.97e-09 Step 67/300 Residual: 9.40e-09 Step 68/300 Residual: 9.61e-09 Step 69/300 Residual: 9.78e-09 Step 70/300 Residual: 9.64e-09 Step 71/300 Residual: 9.55e-09 Step 72/300 Residual: 9.92e-09 Step 73/300 Residual: 9.93e-09 Step 74/300 Residual: 9.90e-09 Step 75/300 Residual: 9.58e-09 Step 76/300 Residual: 9.97e-09 Step 77/300 Residual: 9.97e-09 Step 78/300 Residual: 9.83e-09 Step 79/300 Residual: 9.30e-09 Step 80/300 Residual: 9.97e-09 Step 81/300 Residual: 9.12e-09 Step 82/300 Residual: 9.76e-09 Step 83/300 Residual: 9.66e-09 Step 84/300 Residual: 9.86e-09 Step 85/300 Residual: 9.82e-09 Step 86/300 Residual: 9.81e-09 Step 87/300 Residual: 9.88e-09 Step 88/300 Residual: 9.37e-09 Step 89/300 Residual: 9.83e-09 Step 90/300 Residual: 9.86e-09 Step 91/300 Residual: 9.60e-09 Step 92/300 Residual: 9.80e-09 Step 93/300 Residual: 9.71e-09 Step 94/300 Residual: 9.93e-09 Step 95/300 Residual: 9.83e-09 Step 96/300 Residual: 9.87e-09 Step 97/300 Residual: 9.99e-09 Step 98/300 Residual: 9.61e-09 Step 99/300 Residual: 9.85e-09 Step 100/300 Residual: 9.65e-09 Step 101/300 Residual: 9.71e-09 Step 102/300 Residual: 9.75e-09 Step 103/300 Residual: 9.89e-09 Step 104/300 Residual: 9.63e-09 Step 105/300 Residual: 9.96e-09 Step 106/300 Residual: 9.97e-09 Step 107/300 Residual: 9.71e-09 Step 108/300 Residual: 9.83e-09 Step 109/300 Residual: 9.92e-09 Step 110/300 Residual: 9.27e-09 Step 111/300 Residual: 9.27e-09 Step 112/300 Residual: 9.13e-09 Step 113/300 Residual: 9.53e-09 Step 114/300 Residual: 9.78e-09 Step 115/300 Residual: 9.77e-09 Step 116/300 Residual: 9.67e-09 Step 117/300 Residual: 9.33e-09 Step 118/300 Residual: 9.61e-09 Step 119/300 Residual: 9.69e-09 Step 120/300 Residual: 9.35e-09 Step 121/300 Residual: 9.39e-09 Step 122/300 Residual: 9.30e-09 Step 123/300 Residual: 9.34e-09 Step 124/300 Residual: 9.21e-09 Step 125/300 Residual: 9.68e-09 Step 126/300 Residual: 9.69e-09 Step 127/300 Residual: 9.55e-09 Step 128/300 Residual: 9.60e-09 Step 129/300 Residual: 9.93e-09 Step 130/300 Residual: 9.42e-09 Step 131/300 Residual: 9.41e-09 Step 132/300 Residual: 9.79e-09 Step 133/300 Residual: 9.89e-09 Step 134/300 Residual: 9.95e-09 Step 135/300 Residual: 9.44e-09 Step 136/300 Residual: 9.66e-09 Step 137/300 Residual: 9.49e-09 Step 138/300 Residual: 9.83e-09 Step 139/300 Residual: 9.96e-09 Step 140/300 Residual: 9.49e-09 Step 141/300 Residual: 9.43e-09 Step 142/300 Residual: 9.94e-09 Step 143/300 Residual: 9.49e-09 Step 144/300 Residual: 9.86e-09 Step 145/300 Residual: 9.11e-09 Step 146/300 Residual: 9.81e-09 Step 147/300 Residual: 9.91e-09 Step 148/300 Residual: 9.87e-09 Step 149/300 Residual: 9.63e-09 Step 150/300 Residual: 9.98e-09 Step 151/300 Residual: 9.25e-09 Step 152/300 Residual: 9.93e-09 Step 153/300 Residual: 9.92e-09 Step 154/300 Residual: 9.58e-09 Step 155/300 Residual: 9.92e-09 Step 156/300 Residual: 9.97e-09 Step 157/300 Residual: 9.99e-09 Step 158/300 Residual: 9.24e-09 Step 159/300 Residual: 9.88e-09 Step 160/300 Residual: 9.14e-09 Step 161/300 Residual: 9.76e-09 Step 162/300 Residual: 9.90e-09 Step 163/300 Residual: 9.99e-09 Step 164/300 Residual: 9.72e-09 Step 165/300 Residual: 9.63e-09 Step 166/300 Residual: 9.90e-09 Step 167/300 Residual: 9.56e-09 Step 168/300 Residual: 1.00e-08 Step 169/300 Residual: 9.41e-09 Step 170/300 Residual: 8.96e-09 Step 171/300 Residual: 9.56e-09 Step 172/300 Residual: 9.13e-09 Step 173/300 Residual: 9.93e-09 Step 174/300 Residual: 9.13e-09 Step 175/300 Residual: 9.54e-09 Step 176/300 Residual: 9.11e-09 Step 177/300 Residual: 9.68e-09 Step 178/300 Residual: 8.50e-09 Step 179/300 Residual: 9.01e-09 Step 180/300 Residual: 9.96e-09 Step 181/300 Residual: 9.86e-09 Step 182/300 Residual: 9.98e-09 Step 183/300 Residual: 9.94e-09 Step 184/300 Residual: 9.72e-09 Step 185/300 Residual: 9.36e-09 Step 186/300 Residual: 9.96e-09 Step 187/300 Residual: 9.93e-09 Step 188/300 Residual: 9.59e-09 Step 189/300 Residual: 9.70e-09 Step 190/300 Residual: 9.69e-09 Step 191/300 Residual: 9.75e-09 Step 192/300 Residual: 9.03e-09 Step 193/300 Residual: 9.77e-09 Step 194/300 Residual: 9.83e-09 Step 195/300 Residual: 9.95e-09 Step 196/300 Residual: 9.74e-09 Step 197/300 Residual: 9.18e-09 Step 198/300 Residual: 9.31e-09 Step 199/300 Residual: 9.64e-09 Step 200/300 Residual: 9.54e-09 Step 201/300 Residual: 9.47e-09 Step 202/300 Residual: 9.50e-09 Step 203/300 Residual: 9.76e-09 Step 204/300 Residual: 9.87e-09 Step 205/300 Residual: 9.43e-09 Step 206/300 Residual: 9.36e-09 Step 207/300 Residual: 9.55e-09 Step 208/300 Residual: 9.97e-09 Step 209/300 Residual: 9.79e-09 Step 210/300 Residual: 9.21e-09 Step 211/300 Residual: 9.74e-09 Step 212/300 Residual: 9.65e-09 Step 213/300 Residual: 9.19e-09 Step 214/300 Residual: 9.85e-09 Step 215/300 Residual: 9.85e-09 Step 216/300 Residual: 9.95e-09 Step 217/300 Residual: 9.86e-09 Step 218/300 Residual: 9.82e-09 Step 219/300 Residual: 9.80e-09 Step 220/300 Residual: 9.73e-09 Step 221/300 Residual: 9.86e-09 Step 222/300 Residual: 9.53e-09 Step 223/300 Residual: 9.85e-09 Step 224/300 Residual: 9.64e-09 Step 225/300 Residual: 1.00e-08 Step 226/300 Residual: 9.91e-09 Step 227/300 Residual: 9.93e-09 Step 228/300 Residual: 9.90e-09 Step 229/300 Residual: 9.90e-09 Step 230/300 Residual: 9.76e-09 Step 231/300 Residual: 9.55e-09 Step 232/300 Residual: 9.41e-09 Step 233/300 Residual: 9.78e-09 Step 234/300 Residual: 9.64e-09 Step 235/300 Residual: 9.90e-09 Step 236/300 Residual: 9.86e-09 Step 237/300 Residual: 9.94e-09 Step 238/300 Residual: 9.93e-09 Step 239/300 Residual: 9.89e-09 Step 240/300 Residual: 9.96e-09 Step 241/300 Residual: 9.90e-09 Step 242/300 Residual: 9.84e-09 Step 243/300 Residual: 9.98e-09 Step 244/300 Residual: 9.87e-09 Step 245/300 Residual: 9.99e-09 Step 246/300 Residual: 9.53e-09 Step 247/300 Residual: 9.52e-09 Step 248/300 Residual: 9.84e-09 Step 249/300 Residual: 9.81e-09 Step 250/300 Residual: 9.37e-09 Step 251/300 Residual: 9.19e-09 Step 252/300 Residual: 9.15e-09 Step 253/300 Residual: 8.69e-09 Step 254/300 Residual: 8.68e-09 Step 255/300 Residual: 8.46e-09 Step 256/300 Residual: 9.97e-09 Step 257/300 Residual: 9.93e-09 Step 258/300 Residual: 9.93e-09 Step 259/300 Residual: 9.85e-09 Step 260/300 Residual: 9.59e-09 Step 261/300 Residual: 9.73e-09 Step 262/300 Residual: 9.70e-09 Step 263/300 Residual: 9.49e-09 Step 264/300 Residual: 9.96e-09 Step 265/300 Residual: 9.88e-09 Step 266/300 Residual: 9.91e-09 Step 267/300 Residual: 9.86e-09 Step 268/300 Residual: 9.28e-09 Step 269/300 Residual: 9.66e-09 Step 270/300 Residual: 9.92e-09 Step 271/300 Residual: 9.55e-09 Step 272/300 Residual: 9.66e-09 Step 273/300 Residual: 9.98e-09 Step 274/300 Residual: 9.76e-09 Step 275/300 Residual: 9.46e-09 Step 276/300 Residual: 9.41e-09 Step 277/300 Residual: 9.90e-09 Step 278/300 Residual: 9.59e-09 Step 279/300 Residual: 9.92e-09 Step 280/300 Residual: 9.40e-09 Step 281/300 Residual: 9.37e-09 Step 282/300 Residual: 9.02e-09 Step 283/300 Residual: 9.66e-09 Step 284/300 Residual: 9.66e-09 Step 285/300 Residual: 9.32e-09 Step 286/300 Residual: 9.81e-09 Step 287/300 Residual: 9.43e-09 Step 288/300 Residual: 9.12e-09 Step 289/300 Residual: 8.93e-09 Step 290/300 Residual: 1.00e-08 Step 291/300 Residual: 9.63e-09 Step 292/300 Residual: 9.24e-09 Step 293/300 Residual: 9.35e-09 Step 294/300 Residual: 9.46e-09 Step 295/300 Residual: 9.27e-09 Step 296/300 Residual: 9.79e-09 Step 297/300 Residual: 9.89e-09 Step 298/300 Residual: 9.87e-09 Step 299/300 Residual: 9.67e-09 Step 300/300 Residual: 9.73e-09

Visualization¤

Now we use pyvista and matplotlib to visualize the results.

PyVista code for visualization of the results

gradient_cohesive = jax.jacrev(total_cohesive_energy)

cohesive_forces_per_step = []
opening_per_step = []
stresses_per_step = []
disp_per_step = []

for i in [100, 150, 160, 165, 170, 175, 180, 185, 190, 200]:
    cohesive_forces_per_step.append(
        gradient_cohesive(u_per_step[i].reshape(n_dofs), delta_maxs_per_step[i]).reshape(n_nodes, n_dofs_per_node)
    )
    jump = (
        u_per_step[i].at[top_interface_nodes, :].get()
        - u_per_step[i].at[bottom_interface_nodes, :].get()
    )
    jump_quad = interface_op.eval(jump).squeeze()
    openings = compute_opening(jump_quad)
    opening_per_step.append(openings)

    grad_u = op.grad(u_per_step[i]).squeeze()
    strains = compute_strain(grad_u)
    stresses = compute_stress(strains, mu, lmbda)
    stresses_per_step.append(stresses)
    disp_per_step.append(u_per_step[i])

sargs = dict(
    title=r"Stresses",
    height=0.08,  # Reduces the length (25% of window height)
    width=0.4,  # Adjusts thickness
    vertical=False,  # Orientation
    position_x=0.6,  # Distance from left edge (5%)
    position_y=0.2,  # Distance from bottom edge (5%)
    title_font_size=20,
    label_font_size=16,
    color="black",  # Useful for white/transparent backgrounds
    font_family="arial",
)


step_number = 6


grid = pv.UnstructuredGrid(
    np.hstack((np.full((mesh.elements.shape[0], 1), 8), mesh.elements)).flatten(),
    np.full(mesh.elements.shape[0], pv.CellType.HEXAHEDRON),
    np.array(mesh.coords),
)

grid.cell_data["stresses"] = (
    np.mean(np.array(stresses_per_step[step_number]), axis=1) / E
)
grid = grid.cell_data_to_point_data()

grid_interface = pv.UnstructuredGrid(
    np.hstack(
        (np.full((interface_mesh.elements.shape[0], 1), 4), interface_mesh.elements)
    ).flatten(),
    np.full(interface_mesh.elements.shape[0], pv.CellType.QUAD),
    np.array(interface_mesh.coords),
)

grid_top_interface = pv.UnstructuredGrid(
    np.hstack(
        (np.full((interface_mesh.elements.shape[0], 1), 4), interface_mesh.elements)
    ).flatten(),
    np.full(interface_mesh.elements.shape[0], pv.CellType.QUAD),
    np.array(interface_mesh.coords),
)

pl = pv.Plotter(window_size=(800, 400))
grid["u"] = np.array(disp_per_step[step_number].reshape(-1, n_dofs_per_node))
grid_interface["u"] = np.array(
    disp_per_step[step_number][bottom_interface_nodes].reshape(-1, n_dofs_per_node)
)
grid_interface.cell_data["opening"] = np.array(opening_per_step[step_number])
grid_interface.set_active_scalars("opening")

grid_top_interface["u"] = np.array(
    disp_per_step[step_number][top_interface_nodes].reshape(-1, n_dofs_per_node)
)
grid_top_interface.cell_data["opening"] = np.array(opening_per_step[step_number])
grid_top_interface.set_active_scalars("opening")


warp_factor = 1.0
warped = grid.warp_by_vector("u", factor=warp_factor)

warped_interface = grid_interface.warp_by_vector("u", factor=warp_factor * 0.98)
warped_interface_top = grid_top_interface.warp_by_vector("u", factor=warp_factor * 0.98)


pl.add_mesh(
    warped_interface,
    show_edges=False,
    cmap="pink_r",
    scalars="opening",
    smooth_shading=False,
    show_scalar_bar=False,
)
pl.add_mesh(
    warped,
    show_edges=False,
    scalars="stresses",
    cmap="managua_r",
    line_width=0.1,
    scalar_bar_args=sargs,
    opacity=1.0,
)
pl.view_vector([-0.85, -0.5, 1.0])
pl.show()

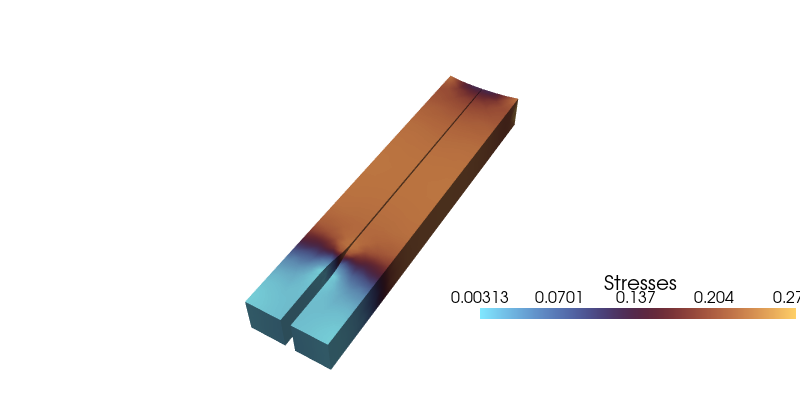

Click the image above to explore the 3D fracture in full screen.

Plotting the force-displacement curve and energy evolution

Gamma_W = Gamma * (Lx - crack_length) * Lz

fig, axs = plt.subplots(
    1, 2, figsize=(7, 3.8), layout="constrained", gridspec_kw={"width_ratios": [1, 1]}
)


axs[0].plot(
    np.array(displacement_on_top) / height / 2,
    (np.array(energies["elastic"]) + np.array(energies["cohesive"])) / Gamma_W,
    markevery=5,
    label="Total",
)
axs[0].plot(
    np.array(displacement_on_top) / height / 2,
    np.array(energies["elastic"]) / Gamma_W,
    label="Elastic",
    markevery=5,
)
axs[0].plot(
    np.array(displacement_on_top) / height / 2,
    np.array(energies["cohesive"]) / Gamma_W,
    label="Cohesive",
    markevery=5,
)

axs[0].axhline(1, color="gray", zorder=-1, linestyle="--")
axs[0].set_xlabel(r"$\varepsilon$")
axs[0].set_ylabel(r"$\Psi/\Gamma\cdot{}W$")
axs[0].grid(True)
axs[0].set_xlim(0, np.array(displacement_on_top)[-80] / height / 2)
axs[0].grid(True)
axs[0].legend(frameon=False, numpoints=1, markerscale=1.25)
axs[0].spines["top"].set_visible(False)
axs[0].spines["right"].set_visible(False)

axs[1].plot(
    np.array(displacement_on_top) / height / 2,
    np.array(force_on_top) / (sigma_c * Lz * (Lx - crack_length)),
    color="#AC8D18",
)
axs[1].set_xlabel(r"$\varepsilon$")
axs[1].set_ylabel(r"$F/(\sigma_c \cdot t \cdot W)$")
axs[1].grid(True)
axs[1].set_xlim(0, np.array(displacement_on_top)[-80] / height / 2)
axs[1].spines["top"].set_visible(False)
axs[1].spines["right"].set_visible(False)

plt.show()

png
