Periodic Boundary Conditions¤

We compute the effective (homogenized) stiffness of a periodic composite by solving a cell problem on one representative unit cell \(\mathcal{A}\). The microscopic displacement is decomposed as

\[ \boldsymbol{u}(\boldsymbol{y}) = \boldsymbol{E}\,\boldsymbol{y} + \boldsymbol{v}(\boldsymbol{y}), \]

where \(\boldsymbol{E}\) is a prescribed macroscopic strain and \(\boldsymbol{v}\) is a periodic fluctuation field.

We solve this example with two approaches:

We show the use of Lagrange multipliers to enforce periodicity. We will solve the saddle-point problem using sparse differentiation and a direct sparse solver.
Alternatively, we enforce periodicity through a MPC and static condensation, and solve the problem using a matrix-free CG-solver.

We follow Jeremy Bleyer's example: https://bleyerj.github.io/comet-fenicsx/tours/homogenization/periodic_elasticity/periodic_elasticity.html

\[ \begin{cases} \nabla\!\cdot\boldsymbol{\sigma}=\boldsymbol{0} & \text{in } \mathcal{A},\\ \boldsymbol{\sigma}=\mathbb{C}(\boldsymbol{y}):\boldsymbol{\varepsilon} & \text{(heterogeneous material)},\\ \boldsymbol{\varepsilon}=\boldsymbol{E}+\nabla^s\boldsymbol{v} & \text{in } \mathcal{A},\\ \boldsymbol{v}\text{ is periodic},\\ \boldsymbol{T}=\boldsymbol{\sigma}\boldsymbol{n}\text{ is anti-periodic.} \end{cases} \]

Because the framework is fully differentiable, we can obtain \(\mathbb{C}^{\text{hom}}\) directly by differentiating the map \(\boldsymbol{E} \mapsto \langle\boldsymbol{\sigma}(\boldsymbol{E})\rangle\), rather than solving separate problems for multiple \(\boldsymbol{E}\).

import gmsh
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
from jax import Array
from tatva import Mesh, Operator, compound, element

jax.config.update("jax_enable_x64", True)

Meshing¤

We build a periodic unit square with circular inclusions using gmsh. Two physical regions are extracted:

Matrix elements
Inclusions elements

Boundary edges are also tagged (left, right, top, bottom) so we can later pair nodes and impose periodicity.

Code for mesh generation and extraction

from itertools import chain
from typing import TypedDict


class PhysicalGroups(TypedDict):
    Matrix: Array
    Inclusions: Array
    bottom: Array
    right: Array
    top: Array
    left: Array


def plot_mesh(mesh: Mesh, pg: PhysicalGroups, ax: plt.Axes | None = None) -> None:
    if ax is None:
        fig, ax = plt.subplots()
    ax.triplot(
        mesh.coords[:, 0], mesh.coords[:, 1], mesh.elements, color="gray", linewidth=0.5
    )
    # Plot physical groups with different colors
    ax.tricontourf(
        mesh.coords[:, 0],
        mesh.coords[:, 1],
        mesh.elements,
        jnp.zeros(mesh.coords.shape[0]).at[pg["Inclusions"]].set(1.0),
        levels=[-0.5, 0.5, 1.5],
        colors=["C0", "C1"],
        alpha=0.3,
    )  # ty: ignore
    ax.set_aspect("equal")


def extract_physical_groups(tag_map: dict) -> PhysicalGroups:
    print("Extracting physical groups from Gmsh model...")
    physical_surfaces: dict[str, Array] = {}

    for dim, pg_tag in chain(
        gmsh.model.getPhysicalGroups(dim=1), gmsh.model.getPhysicalGroups(dim=2)
    ):
        name = gmsh.model.getPhysicalName(dim, pg_tag)

        # Entities (surface tags) that belong to this physical group
        entities = gmsh.model.getEntitiesForPhysicalGroup(dim, pg_tag)

        els = []
        for ent in entities:
            # Get all mesh elements on this surface entity
            types, _, node_tags_by_type = gmsh.model.mesh.getElements(dim, ent)

            for etype, ntags in zip(types, node_tags_by_type):
                nodes = np.array(ntags, dtype=np.int64).reshape(-1, etype + 1)
                els.append(nodes)

        if not els:
            physical_surfaces[name] = np.zeros((0, dim + 1), dtype=np.int32)
            continue

        group_els = np.vstack(els, dtype=np.int32)
        group_els = np.array(
            [[tag_map[t] for t in tri] for tri in group_els], dtype=np.int32
        )
        physical_surfaces[name] = group_els

    return physical_surfaces


def extract_mesh_data() -> tuple[Array, Array, PhysicalGroups]:
    # Extract nodes and elements
    node_tags, node_coords, _ = gmsh.model.mesh.getNodes()
    tag_map = {tag: i for i, tag in enumerate(node_tags)}
    nodes = jnp.array(node_coords).reshape(-1, 3)[:, :2]

    elem_types, elem_tags, elem_node_tags = gmsh.model.mesh.getElements(2)
    elements = jnp.array(elem_node_tags[0]).reshape(-1, 3) - 1

    pg = extract_physical_groups(tag_map)
    return nodes, elements, pg


def generate_mesh(
    Lx: float, Ly: float, c: float, R: float, h: float
) -> tuple[Mesh, PhysicalGroups, NDArray]:
    corners = np.array([[0.0, 0.0], [Lx, 0.0], [Lx + c, Ly], [c, Ly]])
    a1 = corners[1, :] - corners[0, :]  # first vector generating periodicity
    a2 = corners[3, :] - corners[0, :]  # second vector generating periodicity

    gdim = 2  # domain geometry dimension
    fdim = 1  # facets dimension
    gmsh.initialize()

    occ = gmsh.model.occ
    model_rank = 0
    points = [occ.add_point(*corner, 0) for corner in corners]
    lines = [occ.add_line(points[i], points[(i + 1) % 4]) for i in range(4)]
    loop = occ.add_curve_loop(lines)
    unit_cell = occ.add_plane_surface([loop])
    inclusions = [occ.add_disk(*corner, 0, R, R) for corner in corners]
    vol_dimTag = (gdim, unit_cell)
    out = occ.intersect(
        [vol_dimTag], [(gdim, incl) for incl in inclusions], removeObject=False
    )
    incl_dimTags = out[0]
    occ.synchronize()
    occ.cut([vol_dimTag], incl_dimTags, removeTool=False)
    occ.synchronize()

    # tag physical domains and facets
    gmsh.model.addPhysicalGroup(gdim, [vol_dimTag[1]], 1, name="Matrix")
    gmsh.model.addPhysicalGroup(
        gdim,
        [tag for _, tag in incl_dimTags],
        2,
        name="Inclusions",
    )
    gmsh.model.addPhysicalGroup(fdim, [7, 20, 10], 1, name="bottom")
    gmsh.model.addPhysicalGroup(fdim, [9, 19, 16], 2, name="right")
    gmsh.model.addPhysicalGroup(fdim, [15, 18, 12], 3, name="top")
    gmsh.model.addPhysicalGroup(fdim, [11, 17, 5], 4, name="left")
    gmsh.option.setNumber("Mesh.CharacteristicLengthMin", h)
    gmsh.option.setNumber("Mesh.CharacteristicLengthMax", h)

    gmsh.model.mesh.generate(gdim)

    nodes, elements, pg = extract_mesh_data()
    mesh = Mesh(coords=nodes, elements=elements)
    gmsh.finalize()
    return mesh, pg, corners

Ly = np.sqrt(3) / 2.0 * Lx
c = 0.5 * Lx
R = 0.2 * Lx
h = 0.02 * Lx

mesh, pg, corners = generate_mesh(Lx, Ly, c, R, h)

Output

Info    : Meshing 1D...ence
Info    : [  0%] Meshing curve 5 (Line)
Info    : [ 10%] Meshing curve 6 (Ellipse)
Info    : [ 20%] Meshing curve 7 (Line)
Info    : [ 20%] Meshing curve 8 (Ellipse)
Info    : [ 30%] Meshing curve 9 (Line)
Info    : [ 40%] Meshing curve 10 (Line)
Info    : [ 40%] Meshing curve 11 (Line)
Info    : [ 50%] Meshing curve 12 (Line)
Info    : [ 60%] Meshing curve 13 (Ellipse)
Info    : [ 60%] Meshing curve 14 (Ellipse)
Info    : [ 70%] Meshing curve 15 (Line)
Info    : [ 70%] Meshing curve 16 (Line)
Info    : [ 80%] Meshing curve 17 (Line)
Info    : [ 90%] Meshing curve 18 (Line)
Info    : [ 90%] Meshing curve 19 (Line)
Info    : [100%] Meshing curve 20 (Line)
Info    : Done meshing 1D (Wall 0.000598198s, CPU 0.00099s)
Info    : Meshing 2D...
Info    : [  0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info    : [ 50%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info    : [ 70%] Meshing surface 4 (Plane, Frontal-Delaunay)
Info    : [ 90%] Meshing surface 5 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.0501108s, CPU 0.048249s)
Info    : 2679 nodes 5432 elements
Extracting physical groups from Gmsh model...

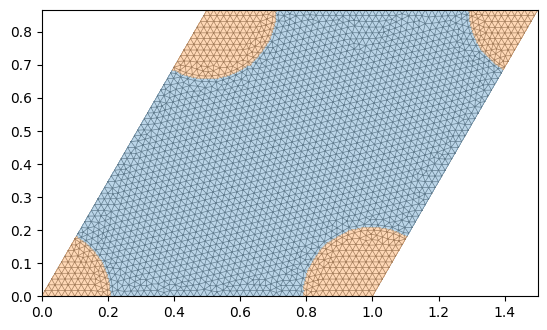

plot_mesh(mesh, pg)

Problem setup¤

Material¤

We define isotropic linear elasticity for each phase through Lame parameters \((\mu,\lambda)\). The local constitutive law is

\[ \boldsymbol{\sigma} = 2\mu\,\boldsymbol{\varepsilon} + \lambda\,\mathrm{tr}(\boldsymbol{\varepsilon})\,\mathbf{I}. \]

For a given macroscopic strain \(\boldsymbol{E}=\hat{\boldsymbol{\varepsilon}}\), the cell energy density uses

\[ \boldsymbol{\varepsilon}(\boldsymbol{u}) = \nabla^s\boldsymbol{u} + \hat{\boldsymbol{\varepsilon}}. \]

This lets us solve the microscopic fluctuation while embedding the imposed macro-strain.

from typing import NamedTuple

from jax_autovmap import autovmap


class Material(NamedTuple):
    """Material properties for the elasticity operator."""

    mu: float  # Shear modulus
    lmbda: float  # Lamé parameter

    @classmethod
    def from_youngs_poisson_2d(
        cls, E: float, nu: float, plane_stress: bool = False
    ) -> "Material":
        mu = E / 2 / (1 + nu)
        if plane_stress:
            lmbda = 2 * nu * mu / (1 - nu)
        else:
            lmbda = E * nu / (1 - 2 * nu) / (1 + nu)
        return cls(mu=mu, lmbda=lmbda)


mat_matrix = Material.from_youngs_poisson_2d(50e3, 0.2)
mat_inclusion = Material.from_youngs_poisson_2d(210e3, 0.3)


@autovmap(grad_u=2)
def compute_strain(grad_u):
    return 0.5 * (grad_u + grad_u.T)


@autovmap(eps=2, mu=0, lmbda=0)
def compute_stress(eps, mu, lmbda):
    return 2 * mu * eps + lmbda * jnp.trace(eps) * jnp.eye(2)


@autovmap(grad_u=2, eps_hat=2, mu=0, lmbda=0)
def strain_energy(grad_u, eps_hat, mu, lmbda):
    """Includes macroscopic strain eps_hat."""
    eps = compute_strain(grad_u) + eps_hat
    sigma = compute_stress(eps, mu, lmbda)
    return 0.5 * jnp.einsum("ij,ij->", sigma, eps)

Periodic mapping¤

Periodic kinematics require matching opposite boundary nodes:

left \(\leftrightarrow\) right
bottom \(\leftrightarrow\) top

The helper edge_bijection builds slave-to-master pairs by geometric matching. Corner nodes are handled separately to avoid duplicate constraints.

from numpy.typing import NDArray

ArrayLike = NDArray | Array

mesh_matrix = mesh._replace(elements=pg["Matrix"])
mesh_inclusion = mesh._replace(elements=pg["Inclusions"])
op_matrix = Operator(mesh_matrix, element.Tri3())
op_inclusion = Operator(mesh_inclusion, element.Tri3())
op = Operator(mesh, element.Tri3())


def edge_bijection(
    coords: ArrayLike,
    m_group: ArrayLike,
    s_group: ArrayLike,
    *,
    axis: int = 0,
    offset: float = 0.0,
) -> Array:
    """Find a bijection between master and slave edge nodes. Returns an array of sorted
    slave node indices such that s_nodes[i] -> m_nodes[i]
    """
    axis = axis ^ 1  # bitwise xor to get the other axis
    m_nodes = jnp.unique(m_group)
    s_nodes = jnp.unique(s_group)

    # exclude corners from the matching (min and max in axis direction)
    m_nodes = m_nodes[
        (coords[m_nodes, axis] != jnp.min(coords[m_nodes, axis]))
        & (coords[m_nodes, axis] != jnp.max(coords[m_nodes, axis]))
    ]
    s_nodes = s_nodes[
        (coords[s_nodes, axis] != jnp.min(coords[s_nodes, axis]))
        & (coords[s_nodes, axis] != jnp.max(coords[s_nodes, axis]))
    ]

    # for each m_node, find the closest s_node depending on the periodicity vector
    def find_closest_slave(m_node: ArrayLike, inv_axis: int) -> ArrayLike:
        diffs = coords[s_nodes, inv_axis] - (coords[m_node, inv_axis] + offset)
        return jnp.array([m_node, s_nodes[jnp.argmin(diffs**2)]])

    return jax.vmap(find_closest_slave, in_axes=(0, None))(m_nodes, axis)


corner_nodes = [
    jnp.argmin(jnp.linalg.norm(mesh.coords - corner, axis=1)) for corner in corners
]
corner_m = jnp.repeat(corner_nodes[0], 3)
corner_s = jnp.array(corner_nodes[1:])
left_right = edge_bijection(mesh.coords, pg["left"], pg["right"], axis=0)
bottom_top = edge_bijection(
    mesh.coords, pg["bottom"], pg["top"], axis=1, offset=Lx * 1 / 2
)
corner_map = jnp.vstack([corner_m, corner_s]).T

PBCs with Lagrange Multipliers¤

We create a Compound subclass with two fields: - \(\mathbf{u}\): the periodic displacement fluctuation field (n_nodes, 2) - \(\lambda\): the lagrange multipliers (n_slave_nodes, 2)

import jax.experimental.sparse as jsparse
import scipy.sparse as sp
from tatva.lifter import DirichletBC, Lifter
from tatva.sparse import create_sparsity_pattern, reduce_sparsity_pattern


class SolutionLM(compound.Compound):
    u = compound.field(mesh.coords.shape)
    lm = compound.field(
        (left_right.shape[0] + bottom_top.shape[0] + corner_s.shape[0], 2)
    )

Code for augmenting sparsity pattern with dense constraint blocks (e.g., for Lagrange multipliers)

def add_dense_matrix_to_sparsity(
    base_sparsity: jsparse.BCOO, B: Array, C_full: bool = False
) -> jsparse.BCOO:
    """Augment a base sparsity pattern with dense constraint blocks.

    Args:
        base_sparsity: Base sparsity pattern for the primal block.
        B: Dense constraint coupling block to be appended.
        C_full: Whether to use a dense (True) or identity (False) constraint block.

    Returns:
        Combined sparsity pattern including the constraint blocks.
    """
    nb_cons = B.shape[0]
    B_sparsity_pattern = jsparse.BCOO.fromdense(B).astype(jnp.int32)
    BT_sparsity_pattern = jsparse.BCOO.fromdense(B.T).astype(jnp.int32)
    if C_full:
        c_dense = jnp.ones((nb_cons, nb_cons))
    else:
        c_dense = jnp.eye(nb_cons, nb_cons)
    C = jsparse.BCOO.fromdense(c_dense).astype(jnp.int32)

    sp_left = jsparse.bcoo_concatenate([base_sparsity, B_sparsity_pattern], dimension=0)
    sp_right = jsparse.bcoo_concatenate([BT_sparsity_pattern, C], dimension=0)
    full_sparsity = jsparse.bcoo_concatenate([sp_left, sp_right], dimension=1)
    return full_sparsity

def constraints_func(u_flat: Array) -> Array:
    """A function that returns the residual of the periodicity constraints, which should
    be zero at the solution. The Lagrange multipliers will enforce these constraints.
    """
    (u, _) = SolutionLM(u_flat)
    u_diff_left_right = u[left_right[:, 0]] - u[left_right[:, 1]]
    u_diff_bot_top = u[bottom_top[:, 0]] - u[bottom_top[:, 1]]
    u_diff_corners = u[corner_m] - u[corner_s]
    return jnp.concatenate(
        [
            u_diff_left_right.flatten(),
            u_diff_bot_top.flatten(),
            u_diff_corners.flatten(),
        ]
    )

Sparsity and graph coloring¤

from tatva_coloring import distance2_color_and_seeds

# generate base sparsity pattern for the primal block
sparsity = create_sparsity_pattern(mesh, 2)
# add dense blocks for the coupling constraints with Lagrange multipliers
sparsity = add_dense_matrix_to_sparsity(
    sparsity,
    jax.jacfwd(constraints_func)(jnp.zeros(SolutionLM.size))[
        :, : -(SolutionLM.lm.shape[0] * 2)
    ],
    C_full=False,  # only coupling constraints, no dense interactions between Lagrange multipliers themselves
)

# we use a lifter to restrict rigid body modes
lifter = Lifter(
    SolutionLM.size,
    DirichletBC(SolutionLM.u[[corner_m[0]]]),
)

sparsity = reduce_sparsity_pattern(sparsity, lifter.free_dofs)
sparsity_csr = sp.csr_matrix(
    (sparsity.data, (sparsity.indices[:, 0], sparsity.indices[:, 1])),
    shape=sparsity.shape,
)

colors = distance2_color_and_seeds(
    sparsity_csr.indptr, sparsity_csr.indices, sparsity.shape[0]
)[0]

print(f"Number of colors required: {jnp.max(colors) + 1}")

Number of colors required: 26

Energy functional and sparse Jacobian¤

The total cell energy is the sum of matrix and inclusion contributions:

\[ \Pi(\mathbf{u};\hat{\boldsymbol{\varepsilon}})=\int_{\mathcal{A}_m}\psi_m\,dA+\int_{\mathcal{A}_i}\psi_i\,dA. \]

We minimize in reduced variables by composing with the lifter, \(\Pi_r(\mathbf{v}) = \Pi(\text{lift}(\mathbf{v}))\).

jax.jacrev gives the residual, and a colored sparse Jacobian is assembled for efficient linear solves.

from tatva import sparse


def total_energy(u: Array, eps_hat: Array) -> Array:
    # compute energy contributions from matrix and inclusion domains
    e_inclusion = op_inclusion.integrate(
        strain_energy(
            op_inclusion.grad(u), eps_hat, mat_inclusion.mu, mat_inclusion.lmbda
        )
    )
    e_matrix = op_matrix.integrate(
        strain_energy(op_matrix.grad(u), eps_hat, mat_matrix.mu, mat_matrix.lmbda)
    )
    return e_inclusion + e_matrix


def lagrangian(u_flat: Array, eps_hat: Array) -> Array:
    (u, lm) = SolutionLM(u_flat)

    # add contribution from Lagrange multipliers enforcing periodicity constraints
    return total_energy(u, eps_hat) + jnp.dot(lm.flatten(), constraints_func(u_flat))


def lagrangian_free(u_free: Array, eps_hat: Array) -> Array:
    u_full = lifter.lift_from_zeros(u_free)
    return lagrangian(u_full, eps_hat)


residual = jax.jacrev(lagrangian_free)
jacobian = sparse.jacfwd(
    residual, sparsity_csr.indptr, sparsity_csr.indices, colors, has_aux_args=True
)

Solve for unit strains¤

We solve three independent 2D strain load cases (Voigt basis):

\(\varepsilon_{xx}=1\)
\(\varepsilon_{yy}=1\)
\(\varepsilon_{xy}=1\) (implemented with symmetric \(0.5\) off-diagonals)

For each case, we solve the linearized equilibrium for fluctuation DOFs, then reconstruct

\[ \boldsymbol{u}(\boldsymbol{y}) = \hat{\boldsymbol{\varepsilon}}\,\boldsymbol{y} + \tilde{\boldsymbol{u}}(\boldsymbol{y}). \]

Newton-Krylov solver with sparse direct solver for the linearized system.

from functools import partial


@partial(jax.jit, static_argnames=["gradient", "compute_tangent"])
def newton_krylov_solver(
    u,
    gradient,
    compute_tangent,
):
    residual = gradient(u)
    norm_res = jnp.linalg.norm(residual)

    init_val = (u, 0, norm_res)

    def cond_fun(state):
        u, iiter, norm_res = state
        return jnp.logical_and(norm_res > 1e-8, iiter < 10)

    def body_fun(state):
        u, iiter, norm_res = state
        residual = gradient(u)

        A = jax.jit(partial(compute_tangent, u_prev=u))

        du, _ = jax.scipy.sparse.linalg.cg(A=A, b=-residual)

        u = u + du

        residual = gradient(u)
        norm_res = jnp.linalg.norm(residual)

        return (u, iiter + 1, norm_res)

    final_u, final_iiter, final_norm = jax.lax.while_loop(cond_fun, body_fun, init_val)
    jax.debug.print("  Residual: {res:.2e}", res=final_norm)

    return final_u, final_norm

from dataclasses import dataclass


def sparse_solve(A: jsparse.BCOO, b: Array) -> Array:
    return jsparse.linalg.spsolve(A.data, sparsity_csr.indices, sparsity_csr.indptr, b)


@dataclass
class Result:
    u: NDArray
    eps_hat: NDArray


v0 = jnp.zeros(lifter.size_reduced)

scale = 0.3
eps_hat_list = scale * jnp.array(
    [
        [[1.0, 0.0], [0.0, 0.0]],
        [[0.0, 0.0], [0.0, 1.0]],
        [[0.0, 0.5], [0.5, 0.0]],
    ]
)  # unit strain tensors

results = []

for eps_hat in eps_hat_list[:]:
    v = sparse_solve(jacobian(v0, eps_hat), -residual(v0, eps_hat))
    u0 = (eps_hat @ mesh.coords.T).T
    u = u0 + SolutionLM(lifter.lift_from_zeros(v)).u
    results.append(Result(u=u, eps_hat=eps_hat))

Results¤

Functions for post-processing and visualization of results

from matplotlib.cm import ScalarMappable
from matplotlib.tri import Triangulation
from matplotlib.colors import ListedColormap, Normalize
from matplotlib.collections import LineCollection

import numpy as np


def cell_to_point_data(
    coords: np.ndarray,
    elements: np.ndarray,
    celldata: np.ndarray,
    *,
    method: str = "area",
    eps: float = 1e-30,
) -> np.ndarray:
    """Interpolate (average) per-cell data to nodes for a 2D triangular mesh.

    Args:
        coords: float
        elements: (node indices per triangle)
        celldata: (nels, ...) float  (e.g. stress components per element)
        method: "uniform" or "area"
            - "uniform": each incident element contributes equally
            - "area"   : each incident element weighted by triangle area
        eps: small number to avoid divide-by-zero

    Returns:
        pointdata: (nnodes, ...) float
    """
    coords = np.asarray(coords)
    elements = np.asarray(elements, dtype=np.int64)
    celldata = np.asarray(celldata)

    nnodes = coords.shape[0]
    nels = elements.shape[0]

    # Flatten celldata trailing dims -> (nels, ncomp)
    trailing_shape = celldata.shape[1:]
    cel_flat = celldata.reshape(nels, -1)
    ncomp = cel_flat.shape[1]

    # Optional weights per element
    if method == "uniform":
        w = np.ones(nels, dtype=cel_flat.dtype)
    elif method == "area":
        tri = coords[elements]  # (nels, 3, 2)
        a = tri[:, 1] - tri[:, 0]
        b = tri[:, 2] - tri[:, 0]
        # signed area*2 = cross(a,b) in 2D
        w = 0.5 * np.abs(a[:, 0] * b[:, 1] - a[:, 1] * b[:, 0])
        w = w.astype(cel_flat.dtype, copy=False)
    else:
        raise ValueError("method must be 'uniform' or 'area'")

    # Accumulate: for each element, add w*celldata to its 3 nodes
    point_sum = np.zeros((nnodes, ncomp), dtype=cel_flat.dtype)
    weight_sum = np.zeros(nnodes, dtype=cel_flat.dtype)

    contrib = cel_flat * w[:, None]  # (nels, ncomp)
    for j in range(3):
        idx = elements[:, j]
        np.add.at(point_sum, idx, contrib)
        np.add.at(weight_sum, idx, w)

    point_flat = point_sum / (weight_sum[:, None] + eps)
    return point_flat.reshape((nnodes,) + trailing_shape)


def stress(u: Array) -> Array:
    """Computes the stress respecting the two separate materials."""
    grad_u = op.grad(u).squeeze()
    eps = compute_strain(grad_u)
    sig_1 = compute_stress(eps, mat_matrix.mu, mat_matrix.lmbda)
    sig_2 = compute_stress(eps, mat_inclusion.mu, mat_inclusion.lmbda)
    mask = jnp.isin(op.mesh.elements, mesh_inclusion.elements).all(axis=1)  # (nels,)
    sig = jnp.where(mask[:, None, None], sig_2, sig_1)
    return sig


def von_mises_2d(sig: Array) -> Array:
    sxx = sig[..., 0, 0]
    syy = sig[..., 1, 1]
    sxy = sig[..., 0, 1]
    return jnp.sqrt(sxx**2 - sxx * syy + syy**2 + 3 * sxy**2)

Matplotlib settings for plotting

plt.rcParams.update(
    {
        "text.usetex": True,
        "text.latex.preamble": r"\usepackage{amsmath}",
        "grid.color": "grey",
        "grid.linestyle": "solid",
        "grid.linewidth": 0.25,
        "grid.alpha": 0.2,
        "figure.dpi": 200,
    }
)

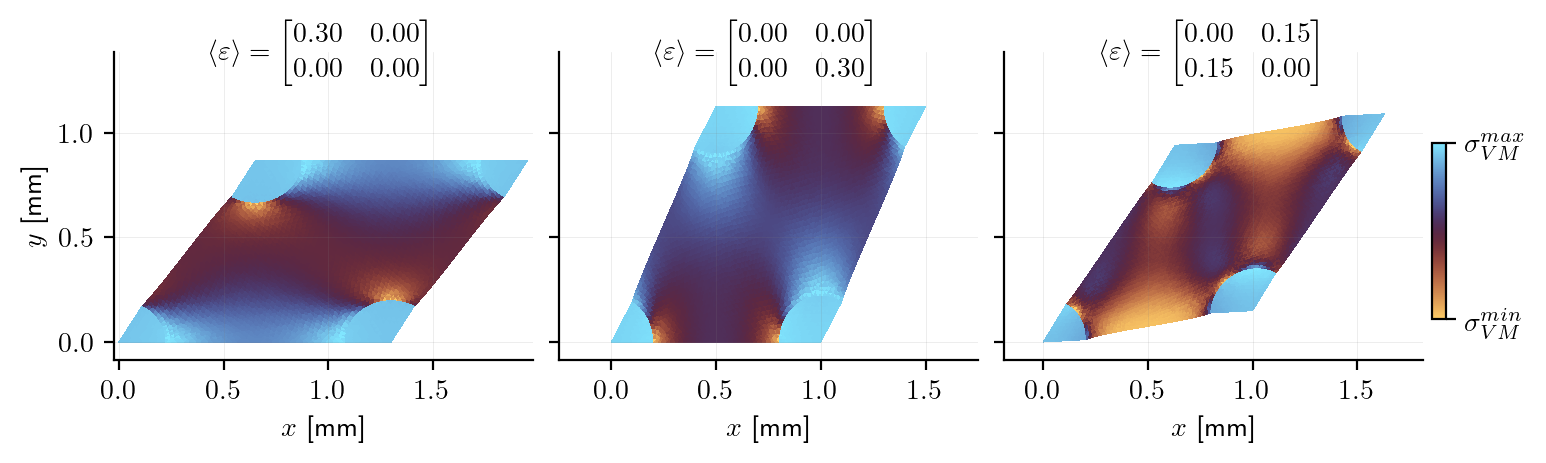

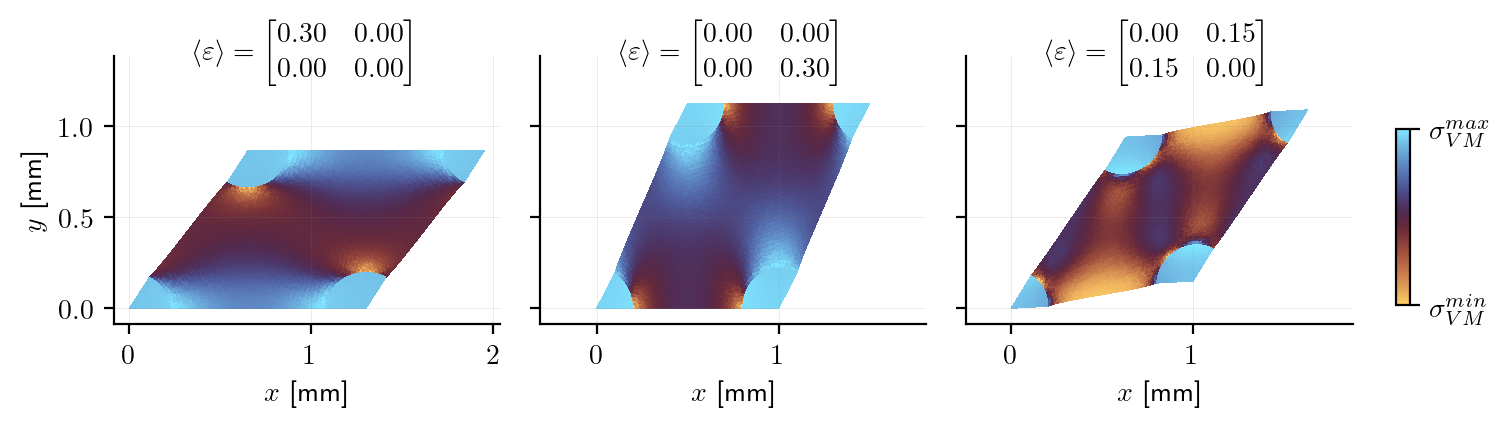

fig, axes = plt.subplots(1, 3, figsize=(7.1, 2.2), sharey=True)

sig_vm_min = np.inf
sig_vm_max = -np.inf

for res in results:
    sig = stress(res.u)
    sig_vm = von_mises_2d(sig)
    sig_vm_min = min(sig_vm_min, jnp.min(sig_vm))
    sig_vm_max = max(sig_vm_max, jnp.max(sig_vm))

for i, (ax, res) in enumerate(zip(axes, results)):
    ax: plt.Axes
    x = mesh.coords + res.u
    tri = Triangulation(x[:, 0], x[:, 1], triangles=np.array(mesh.elements))
    sig = stress(res.u)
    sig_vm = von_mises_2d(sig)

    m = ax.tripcolor(tri, facecolors=sig_vm, cmap="managua", rasterized=True)
    ax.set_aspect("equal", adjustable="datalim")
    # keep axes size consistent
    ax.set_ylim(-0.1 * Ly, Ly * 1.6)
    ax.grid()
    ax.set_xlabel("$x$ [mm]")
    ax.spines["top"].set_visible(False)
    ax.spines["right"].set_visible(False)
    ax.annotate(
        r"$$\langle\varepsilon\rangle = \begin{bmatrix}"
        + f"{res.eps_hat[0, 0]:.2f} & {res.eps_hat[0, 1]:.2f} \\\\ "
        + f"{res.eps_hat[1, 0]:.2f} & {res.eps_hat[1, 1]:.2f} "
        + r"\end{bmatrix}$$",
        xy=(0.5, 0.89),
        ha="center",
        va="bottom",
        xycoords="axes fraction",
    )

axes[0].set(ylabel="$y$ [mm]")
cax = fig.add_axes((1.0, 0.3, 0.01, 0.4))
sm = ScalarMappable(Normalize(vmin=0, vmax=1), cmap="managua")
cb = fig.colorbar(sm, cax=cax, orientation="vertical", pad=0.1)
cb.set_ticks([0, 1])
cb.set_ticklabels((r"$\sigma_{{VM}}^{{min}}$", r"$\sigma_{{VM}}^{{max}}$"))

plt.tight_layout()

/tmp/ipykernel_98198/2498942156.py:45: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

Compute homogenized stiffness tensor¤

From each solved microfield, we compute element stresses and average them over the cell:

\[ \langle \boldsymbol{\sigma} \rangle = \frac{1}{|\mathcal{A}|}\int_{\mathcal{A}} \boldsymbol{\sigma}\,dA. \]

The homogenized tangent in Voigt form is obtained by automatic differentiation of \(\langle\boldsymbol{\sigma}\rangle(\hat{\boldsymbol{\varepsilon}})\):

\[ \mathbf{C}^{\text{hom}} = \frac{\partial\langle\boldsymbol{\sigma}\rangle}{\partial\hat{\boldsymbol{\varepsilon}}}. \]

Note

Unfortunately, the sparse solver of jax is not differentiable yet. Therefore, we use a dense direct solver for this part of the example.

jacobian_dense = jax.jacfwd(residual)


def func(eps_hat_voigt: Array) -> Array:
    """Returns the average stress for a given macroscopic strain eps_hat (in Voigt notation)."""
    eps_hat = jnp.array(
        [[eps_hat_voigt[0], eps_hat_voigt[2]], [eps_hat_voigt[2], eps_hat_voigt[1]]]
    )
    v = jnp.linalg.solve(jacobian_dense(v0, eps_hat), -residual(v0, eps_hat))
    u = (eps_hat @ mesh.coords.T).T + SolutionLM(lifter.lift_from_zeros(v)).u
    sig = stress(u)
    sig = jnp.mean(sig, axis=0)  # average stress
    return jnp.array([sig[0, 0], sig[1, 1], sig[0, 1]])


C_hom = jax.jacfwd(func)(jnp.ones(3))

print("Homogenized stiffness tensor (Voigt notation):")
with np.printoptions(precision=2):
    print(C_hom)

Homogenized stiffness tensor (Voigt notation):
[[6.58e+04 1.75e+04 8.28e+01]
 [1.75e+04 6.57e+04 1.44e+02]
 [5.57e+01 8.66e+01 4.82e+04]]

PBCs through condensation¤

We create a Compound subclass with one field: - \(\mathbf{u}\): the periodic displacement fluctuation field (n_nodes, 2)

Lifter enforces constraints in reduced coordinates. We define:

PeriodicMap(slave, master) for periodic DOF ties
one DirichletBC at a corner to remove rigid-body translation

Then the solver unknown is only the free DOF vector \(\mathbf{v}\), while lifter.lift_from_zeros(v) reconstructs the full constrained field.

from tatva.sparse import reduce_sparsity_pattern
from tatva.lifter import PeriodicMap, Lifter, DirichletBC
from tatva.sparse._extraction import create_sparsity_pattern_master_slave


class Solution(compound.Compound):
    u = compound.field(mesh.coords.shape)


periodic_map = jnp.concatenate(
    [
        jnp.array([Solution.u[nodes, :] for nodes in left_right.T]).T,
        jnp.array([Solution.u[nodes, :] for nodes in bottom_top.T]).T,
        jnp.array([Solution.u[nodes, :] for nodes in corner_map.T]).T,
    ]
)

lifter = Lifter(
    Solution.size,
    DirichletBC(Solution.u[[corner_m[0]]]),
    PeriodicMap(periodic_map[:, 1], periodic_map[:, 0]),
)

sparsity = create_sparsity_pattern_master_slave(
    mesh,
    2,
    jnp.arange(Solution.size)
    .at[Solution.u[[corner_m[0]]]]
    .set(-1)
    .at[periodic_map[:, 1]]
    .set(periodic_map[:, 0]),
)

Energy functional¤
