Linear elasticity with PETSc¤

Info

This example uses PETSc to solver the nonlinear problem. Please ensure that petsc4py is installed to run this example.

In this notebook, we solve a linear elastic problem using PETSc based solvers.

from typing import NamedTuple

import gmsh
import jax

jax.config.update("jax_enable_x64", True)

import jax.numpy as jnp
from jax import Array
from jax_autovmap import autovmap
from tatva import Mesh, Operator, sparse

from petsc4py import PETSc

Code for generating a plate with a hole and plotting the mesh

import matplotlib.pyplot as plt
from matplotlib.axes import Axes
import meshio

import numpy as np
import os


def plot_mesh(mesh: Mesh, ax: Axes | None = None) -> None:
    if ax is None:
        fig, ax = plt.subplots()
    ax.tripcolor(
        mesh.coords[:, 0],
        mesh.coords[:, 1],
        mesh.elements,
        facecolors=np.ones(len(mesh.elements)),
        cmap="managua",
        edgecolors="k",
        linewidth=0.2,
    )

    ax.set_aspect("equal")
    ax.margins(0.0)

def generate_refined_plate_with_hole(
    width: float,
    height: float,
    hole_radius: float,
    mesh_size_fine: float,
    mesh_size_coarse: float,
):
    mesh_dir = os.path.join(os.getcwd(), "../meshes")
    os.makedirs(mesh_dir, exist_ok=True)
    output_filename = os.path.join(mesh_dir, "plate_hole_refined.msh")

    gmsh.initialize()
    gmsh.model.add("plate_with_hole_refined")
    occ = gmsh.model.occ

    rect = occ.addRectangle(0, 0, 0, width, height)
    cx = width / 2.0
    cy = height / 2.0
    disk = occ.addDisk(cx, cy, 0, hole_radius, hole_radius)

    out, _ = occ.cut([(2, rect)], [(2, disk)])
    occ.synchronize()

    surface_tag = out[0][1]
    gmsh.model.addPhysicalGroup(2, [surface_tag], 1, name="domain")

    boundaries = gmsh.model.getBoundary(out, oriented=False)
    boundary_tags = [b[1] for b in boundaries]
    gmsh.model.addPhysicalGroup(1, boundary_tags, 2, name="boundaries")

    hole_curve_tags = []
    for tag in boundary_tags:
        xmin, ymin, zmin, xmax, ymax, zmax = gmsh.model.getBoundingBox(1, tag)
        # The hole is completely inside the outer rectangle
        if xmin > 0 and xmax < width and ymin > 0 and ymax < height:
            hole_curve_tags.append(tag)

    gmsh.model.mesh.field.add("Distance", 1)
    gmsh.model.mesh.field.setNumbers(1, "CurvesList", hole_curve_tags)
    gmsh.model.mesh.field.setNumber(1, "NumPointsPerCurve", 100)

    gmsh.model.mesh.field.add("Threshold", 2)
    gmsh.model.mesh.field.setNumber(2, "InField", 1)
    gmsh.model.mesh.field.setNumber(2, "SizeMin", mesh_size_fine)
    gmsh.model.mesh.field.setNumber(2, "SizeMax", mesh_size_coarse)
    # Start growing the mesh exactly at the hole boundary
    gmsh.model.mesh.field.setNumber(2, "DistMin", 0.0)
    # Reach maximum element size at a distance equal to 2 hole radii away
    gmsh.model.mesh.field.setNumber(2, "DistMax", hole_radius * 2.0)

    gmsh.model.mesh.field.setAsBackgroundMesh(2)

    gmsh.option.setNumber("Mesh.MeshSizeExtendFromBoundary", 0)
    gmsh.option.setNumber("Mesh.MeshSizeFromPoints", 0)
    gmsh.option.setNumber("Mesh.MeshSizeFromCurvature", 0)

    gmsh.model.mesh.generate(2)
    gmsh.write(output_filename)
    gmsh.finalize()

    _mesh = meshio.read(output_filename)
    coords = _mesh.points[:, :2]
    elements = _mesh.cells_dict["triangle"]

    return Mesh(coords=coords, elements=elements)

lx = 1.0
ly = 1.0
mesh = generate_refined_plate_with_hole(
    lx, ly, hole_radius=0.2, mesh_size_fine=0.01, mesh_size_coarse=0.05
)

n_dofs_per_node = 2
n_dofs = mesh.coords.shape[0] * n_dofs_per_node

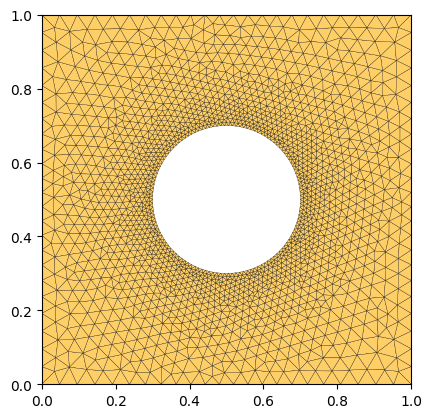

plot_mesh(mesh)

Info    : Meshing 1D...
Info    : [  0%] Meshing curve 5 (Ellipse)
Info    : [ 30%] Meshing curve 6 (Line)
Info    : [ 50%] Meshing curve 7 (Line)
Info    : [ 70%] Meshing curve 8 (Line)
Info    : [ 90%] Meshing curve 9 (Line)
Info    : Done meshing 1D (Wall 0.0274259s, CPU 0.022802s)
Info    : Meshing 2D...
Info    : Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.0437901s, CPU 0.041577s)
Info    : 1874 nodes 3753 elements
Info    : Writing '/home/mohit/Documents/dev/tatva-docs/docs/external_solvers/../meshes/plate_hole_refined.msh'...
Info    : Done writing '/home/mohit/Documents/dev/tatva-docs/docs/external_solvers/../meshes/plate_hole_refined.msh'

png

Problem setup¤

from tatva.element import Tri3

op = Operator(mesh, Tri3())


boundary_left = jnp.where(jnp.isclose(mesh.coords[:, 0], 0.0))[0]
boundary_right = jnp.where(jnp.isclose(mesh.coords[:, 0], lx))[0]
point_at_y_0 = jnp.where(
    jnp.isclose(mesh.coords[:, 0], lx) & jnp.isclose(mesh.coords[:, 1], 0.0)
)[0][0]
assert point_at_y_0

fixed_dofs = jnp.concatenate(
    [
        boundary_left * n_dofs_per_node,
    ]
)
free_dofs = jnp.setdiff1d(jnp.arange(n_dofs), fixed_dofs)

Defining energy functional¤

We now define the functions to compute the total strain energy

class Material(NamedTuple):
    """Material properties for the elasticity operator."""

    mu: float
    lmbda: float

    @classmethod
    def from_youngs_poisson_2d(
        cls, E: float, nu: float, plane_stress: bool = False
    ) -> "Material":
        mu = E / 2 / (1 + nu)
        if plane_stress:
            lmbda = 2 * nu * mu / (1 - nu)
        else:
            lmbda = E * nu / (1 - 2 * nu) / (1 + nu)
        return cls(mu=mu, lmbda=lmbda)


mat = Material.from_youngs_poisson_2d(1, 0.3)


@autovmap(grad_u=2)
def compute_strain(grad_u):
    return 0.5 * (grad_u + grad_u.T)


@autovmap(eps=2, mu=0, lmbda=0)
def compute_stress(eps, mu, lmbda):
    return 2 * mu * eps + lmbda * jnp.trace(eps) * jnp.eye(2)


@autovmap(grad_u=2, mu=0, lmbda=0)
def strain_energy_density(grad_u, mu, lmbda):
    eps = compute_strain(grad_u)
    sigma = compute_stress(eps, mu, lmbda)
    return 0.5 * jnp.einsum("ij,ij->", sigma, eps)

Enforcing boundary condition via static condensation¤

@jax.jit
def total_energy_full(u_flat: Array) -> Array:
    """Compute the total energy of the system."""
    u = u_flat.reshape(-1, 2)
    u_grad = op.grad(u)
    e_density = strain_energy_density(u_grad, mat.mu, mat.lmbda)
    return op.integrate(e_density)


@jax.jit
def total_energy(u_free: Array, applied_disp: Array) -> Array:
    """Compute the total energy of the system."""
    u_full = jnp.zeros(n_dofs).at[free_dofs].set(u_free)
    u_full = u_full.at[fixed_dofs].set(applied_disp)
    return total_energy_full(u_full)


residual = jax.jacrev(total_energy)

Now we can define the sparsity_pattern and use sparse.jacfwd to create a function that computes the sparse stiffness matrix using sparse differentiation.

nb_dofs_per_node = 2

sparsity_pattern = sparse.create_sparsity_pattern(
    mesh, n_dofs_per_node=nb_dofs_per_node
)

reduced_sparsity_pattern = sparse.reduce_sparsity_pattern(sparsity_pattern, free_dofs)

colored_matrix = sparse.ColoredMatrix.from_csr(reduced_sparsity_pattern)

hessian_fn = sparse.jacfwd(
    fn=residual,
    colored_matrix=colored_matrix,
    color_batch_size=10,
)

Defining the loading traction on right edge¤

We define a new Operator consisting of line elements along the right edge and then use this op_line to integrate the traction along the nodes.

sig_loading = 1e-2

f_ext_0 = jnp.zeros(n_dofs)

idx_right = n_dofs_per_node * boundary_right

f_ext_0 = f_ext_0.at[idx_right].add(sig_loading)
f_ext = f_ext_0.at[free_dofs].get()

Now let us solve the linear problem using PETSc

\[ \mathbf{K}\boldsymbol{u} =\boldsymbol{f}_\text{ext} \]

We will use the above defined hessian_fn to compute the sparse stiffness matrix and will convert it to PETSc.Mat.AIJ which is the the sparse matrix representation.

K_sparse = hessian_fn(
    jnp.zeros(len(free_dofs)), applied_disp=jnp.zeros(len(fixed_dofs))
)
petsc_mat = PETSc.Mat().createAIJ(
    size=K_sparse.shape,
    csr=(
        K_sparse.indptr,
        K_sparse.indices,
        K_sparse.data,
    ),
)

Setting up PETSc solver (Direct Linear Solver)¤

We first set a Direct Linear Solver in PETSc.

ksp = PETSc.KSP().create()
ksp.setOperators(petsc_mat)
ksp.setType('preonly')
ksp.setConvergenceHistory()
ksp.getPC().setType('lu')

We can now solve the linear system for the applied \(\boldsymbol{f}_\text{ext}\)

du = petsc_mat.createVecRight()
b = petsc_mat.createVecLeft()
b.setArray(f_ext)
ksp.solve(b, du)

Visualization and analyzing the results¤

Code to visualize the results

from matplotlib.tri import Triangulation

u = jnp.zeros(n_dofs).at[free_dofs].set(du.getArray())
u = u.reshape(-1, 2)

fig, ax = plt.subplots(figsize=(7.4, 3))
x_final = mesh.coords + u
tri = Triangulation(x_final[:, 0], x_final[:, 1], mesh.elements)

sig = compute_stress(compute_strain(op.grad(u)), mat.mu, mat.lmbda).squeeze()


def plot_field(ax: Axes):
    cb = ax.tripcolor(
        tri,
        sig[..., 0, 1],
        alpha=0.95,
        rasterized=True,
        cmap="managua",
    )
    ax.set_aspect("equal")
    ax.set(
        xlabel="$x$",
        ylabel="$y$",
    )
    return cb


cb = plot_field(ax)
ax.set_axis_off()
plt.colorbar(cb, ax=ax, label=r"$\sigma_{xy}$", shrink=0.7)
fig.tight_layout()

png

Setting up PETSc Solver (Iterative Solver)¤

We will use a Conjugate Gradient solver from PETSc. Although, here we will directly use the sparse matrix and pass it on to PETSc.

Info

Ideally, we should use the JVP and set the function.

ksp = PETSc.KSP().create()
ksp.setOperators(petsc_mat)
ksp.setType('cg')
ksp.setConvergenceHistory()
ksp.getPC().setType('gamg')

We can now solve the linear system for the applied \(\boldsymbol{f}_\text{ext}\)

du = petsc_mat.createVecRight()
b = petsc_mat.createVecLeft()
b.setArray(f_ext)

ksp.solve(b, du)

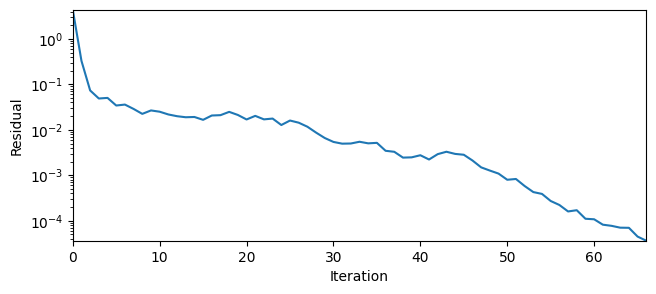

Lets see how the error evolved during the iterations.

Code to visualize the convergence history

residuals = ksp.getConvergenceHistory()

plt.figure(figsize=(7.4, 3))
plt.semilogy(residuals)
plt.xlabel("Iteration")
plt.ylabel("Residual")
plt.gca().margins(0.0)
plt.show()

png

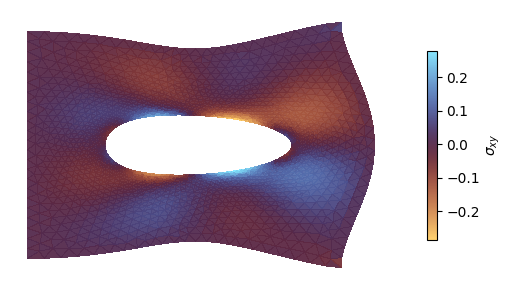

We can visualize the deformation of the plate and it should be identical to the previous result.

Code to visualize the results

from matplotlib.tri import Triangulation

u = jnp.zeros(n_dofs).at[free_dofs].set(du.getArray())
u = u.reshape(-1, 2)

fig, ax = plt.subplots(figsize=(7.4, 3))
x_final = mesh.coords + u
tri = Triangulation(x_final[:, 0], x_final[:, 1], mesh.elements)

sig = compute_stress(compute_strain(op.grad(u)), mat.mu, mat.lmbda).squeeze()


def plot_field(ax: Axes):
    cb = ax.tripcolor(
        tri,
        sig[..., 0, 1],
        alpha=0.95,
        rasterized=True,
        cmap="managua",
    )
    ax.set_aspect("equal")
    ax.set(
        xlabel="$x$",
        ylabel="$y$",
    )
    return cb


cb = plot_field(ax)
ax.set_axis_off()
plt.colorbar(cb, ax=ax, label=r"$\sigma_{xy}$", shrink=0.7)
fig.tight_layout()

png
