Gibbs Ringing Artifact¤

In this example, we see the effect of Gibbs ringing artifact on the stress field. The original FFT methods used a spectral derivative (\(D_k = i\xi_k\)). This scheme has "global support," meaning the derivative at one point depends on all other points. At sharp material interfaces, this causes the Gibbs phenomenon, which appears as spurious oscillations ("ringing") in the stress/strain fields.

In this notebook, we solve the same problem using a local scheme

  • CentralDifference: This scheme is mathematically equivalent to a Linear Finite Element (LFE) formulation on a regular grid. It is extremely effective at eliminating ringing artifacts and is highly recommended.
  • RotatedDifference: This scheme (from Willot, 2015) is equivalent to a trilinear Finite Element formulation with reduced integration (like HEX8R). It is also very stable and robust.
import jax

jax.config.update("jax_enable_x64", True)  # use double-precision
jax.config.update("jax_platforms", "cpu")

import jax.numpy as jnp
import numpy as np

from jax import Array
import equinox as eqx

import matplotlib.pyplot as plt
from skimage.morphology import footprint_rectangle as rectangle
from mpl_toolkits.axes_grid1 import make_axes_locatable

from xpektra import (
    SpectralSpace,
    TensorOperator,
    make_field,
)
from xpektra.projection_operator import GalerkinProjection
from xpektra.solvers.nonlinear import (  # noqa: E402
    conjugate_gradient_while,
    newton_krylov_solver,
)

In xpektra, we can import various schemes from the scheme module.

from xpektra.scheme import RotatedDifference, Fourier, CentralDifference, CartesianScheme

def param(X, soft, hard):
    return soft * jnp.ones_like(X) * (X) + hard * jnp.ones_like(X) * (1 - X)


def test_microstructure(N, scheme, length):
    H, L = (N, N)
    r = int(H / 2)

    structure = np.zeros((H, L))
    structure[:r, -r:] += rectangle((r, r))
    structure = np.flipud(structure)
    structure = np.fliplr(structure)

    ndim = len(structure.shape)
    N = structure.shape[0]

    tensor = TensorOperator(dim=ndim)
    space = SpectralSpace(size=N, dim=ndim, length=length)

    if scheme == "rotated":
        scheme = RotatedDifference(space=space)
    elif scheme == "fourier":
        scheme = Fourier(space=space)
    elif scheme == "central":
        scheme = CentralDifference(space=space)
    else:
        raise ValueError(f"Invalid scheme: {scheme}")

    # material parameters
    phase_contrast = 1000.0

    # lames constant
    lambda_modulus = {"soft": 1.0, "hard": phase_contrast}
    shear_modulus = {"soft": 1.0, "hard": phase_contrast}

    bulk_modulus = {}
    bulk_modulus["soft"] = lambda_modulus["soft"] + 2 * shear_modulus["soft"] / 3
    bulk_modulus["hard"] = lambda_modulus["hard"] + 2 * shear_modulus["hard"] / 3

    # material parameters
    μ0 = param(
        structure, soft=shear_modulus["soft"], hard=shear_modulus["hard"]
    )  # shear     modulus
    λ0 = param(
        structure, soft=lambda_modulus["soft"], hard=lambda_modulus["hard"]
    )  # shear     modulus

    dofs_shape = make_field(dim=ndim, N=N, rank=2).shape

    @eqx.filter_jit
    def strain_energy(eps_flat: Array) -> Array:
        eps = eps_flat.reshape(dofs_shape)
        eps_sym = 0.5 * (eps + tensor.trans(eps))
        energy = 0.5 * jnp.multiply(λ0, tensor.trace(eps_sym) ** 2) + jnp.multiply(
            μ0, tensor.trace(tensor.dot(eps_sym, eps_sym))
        )
        return energy.sum()

    compute_stress = jax.jacrev(strain_energy)

    Ghat = GalerkinProjection(scheme=scheme)

    class Residual(eqx.Module):
        """A callable module that computes the residual vector."""

        Ghat: CartesianScheme
        space: SpectralSpace = eqx.field(static=True)
        tensor_op: TensorOperator = eqx.field(static=True)
        dofs_shape: tuple = eqx.field(static=True)

        # We can even pre-define the stress function if it's always the same
        # For this example, we'll keep your original `compute_stress` function
        # available in the global scope.

        @eqx.filter_jit
        def __call__(self, eps_flat: Array) -> Array:
            """
            This makes instances of this class behave like a function.
            It takes only the flattened vector of unknowns, as required by the solver.
            """
            eps_flat = eps_flat.reshape(-1)
            sigma = compute_stress(
                eps_flat
            )  # Assumes compute_stress is defined elsewhere
            residual_field = self.space.ifft(
                self.Ghat.project(self.space.fft(sigma.reshape(self.dofs_shape)))
            )
            return jnp.real(residual_field).reshape(-1)

    class Jacobian(eqx.Module):
        """A callable module that represents the Jacobian operator (tangent)."""

        Ghat: CartesianScheme
        space: SpectralSpace = eqx.field(static=True)
        tensor_op: TensorOperator = eqx.field(static=True)
        dofs_shape: tuple = eqx.field(static=True)

        @eqx.filter_jit
        def __call__(self, deps_flat: Array) -> Array:
            """
            The Jacobian is a linear operator, so its __call__ method
            represents the Jacobian-vector product.
            """

            deps_flat = deps_flat.reshape(-1)
            dsigma = compute_stress(deps_flat)
            jvp_field = self.space.ifft(
                self.Ghat.project(self.space.fft(dsigma.reshape(self.dofs_shape)))
            )
            return jnp.real(jvp_field).reshape(-1)

    eps = make_field(dim=ndim, N=N, rank=2)
    residual_fn = Residual(
        Ghat=Ghat, space=space, tensor_op=tensor, dofs_shape=eps.shape
    )
    jacobian_fn = Jacobian(
        Ghat=Ghat, space=space, tensor_op=tensor, dofs_shape=eps.shape
    )

    deps = make_field(dim=ndim, N=N, rank=2)
    deps[:, :, 0, 1] = 5e-1
    deps[:, :, 1, 0] = 5e-1

    b = -residual_fn(deps)
    eps = eps + deps

    final_state = newton_krylov_solver(
        state=(deps, b, eps),
        gradient=residual_fn,
        jacobian=jacobian_fn,
        tol=1e-10,
        max_iter=20,
        krylov_solver=conjugate_gradient_while,
        krylov_tol=1e-8,
        krylov_max_iter=20,
    )
    eps = final_state[2]

    sig = compute_stress(eps.reshape(-1)).reshape(dofs_shape)

    return sig.at[:, :, 0, 1].get(), structure

N = 99
length = 1

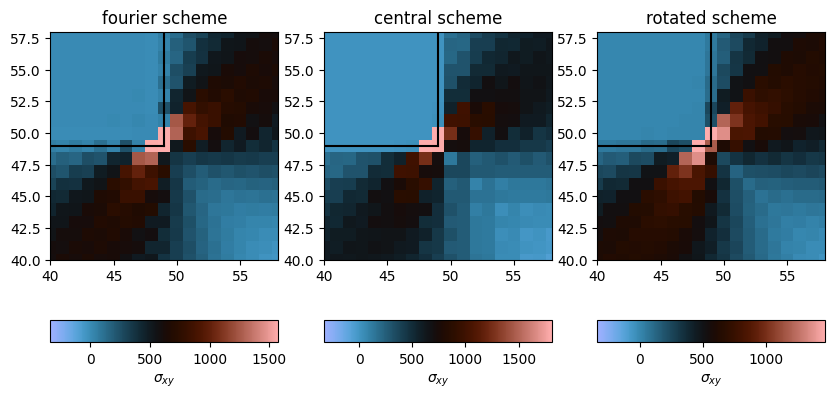

fig, axs = plt.subplots(1, 3, figsize=(10, 5))


for index, scheme in enumerate(["fourier", "central", "rotated"]):

    sig_xy, structure = test_microstructure(N=N, scheme=scheme, length=length)
    dx = length / N
    N_inset = int(0.1 / dx)


    cb = axs[index].imshow(sig_xy, origin="lower", cmap="berlin",)
    axs[index].set_title(f"{scheme} scheme")

    axs[index].set_xlim(int(N / 2) - N_inset, int(N / 2) + N_inset)
    axs[index].set_ylim(int(N / 2) - N_inset, int(N / 2) + N_inset)
    axs[index].plot(
        [int(N / 2) - N_inset, int(N / 2)], [int(N / 2), int(N / 2)], color="k", zorder=20
    )
    axs[index].plot(
        [int(N / 2), int(N / 2)],
        [int(N / 2), int(N / 2) + N_inset],
        color="k",
        zorder=20,
    )

    divider = make_axes_locatable(axs[index])
    cax = divider.append_axes("bottom", size="10%", pad=0.6)
    fig.colorbar(cb, cax=cax, label=r"$\sigma_{xy}$", orientation="horizontal", location="bottom")

plt.show()

CG error = 1809191201.65288829803467
CG error = 180711.28018052203697
CG error = 46714.20145051593863
CG error = 14617.25232148401119
CG error = 5832.59698513089097
CG error = 2431.65598926188977
CG error = 3116.29740077978477
CG error = 614.33968567417730
CG error = 952.91201451378811
CG error = 127.43347812995538
CG error = 219.72885043808103
CG error = 30.34384937912854
CG error = 53.54063847293286
CG error = 7.48889951501528
CG error = 13.38287004868258
CG error = 1.88468977537643
CG error = 3.38704753366071
CG error = 0.47806966030197
CG error = 0.83063693820718
CG error = 0.10407914602798
Didnot converge, Residual value : 0.4302411050563448
CG error = 1809191201.65286087989807
CG error = 30528.61295431769031
CG error = 410.36880422420364
CG error = 33.62624023735062
CG error = 1.81363087903672
CG error = 0.26855517956802
CG error = 0.01572767915948
CG error = 0.00364347008115
CG error = 0.00026425956375
CG error = 0.00004561819059
CG error = 0.00000353302146
CG error = 0.00000065830433
CG error = 0.00000005500087
CG error = 0.00000001175910
CG error = 0.00000000134181
CG error = 0.00000000028057
CG error = 0.00000000003430
CG error = 0.00000000000619
CG error = 0.00000000000074
CG error = 0.00000000000010
Didnot converge, Residual value : 1.1374537107621268e-07
CG error = 1809191201.65287327766418
CG error = 1.25285005834628
CG error = 0.00001036363130
CG error = 0.00000002019141
CG error = 0.00000000000601
CG error = 0.00000000000006
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
CG error = 0.00000000000000
Didnot converge, Residual value : 7.464999427292982e-09
