Moulinec-Suquet as Newton-Krylov solver¤
In this tutorial, we will solve a linear elasticity problem using Moulinec-Suquet's Green's operator but recasted the Lippmann-Schwinger equation as a Newton-Krylov solver.
import jax
jax.config.update("jax_persistent_cache_min_compile_time_secs", 0)
jax.config.update("jax_enable_x64", True) # use double-precision
jax.config.update("jax_platforms", "cpu")
import jax.numpy as jnp
from jax import Array
import numpy as np
import equinox as eqx
import matplotlib.pyplot as plt
from xpektra import (
SpectralSpace,
make_field,
)
from xpektra.transform import FFTTransform
from xpektra.scheme import FourierScheme
from xpektra.spectral_operator import SpectralOperator
from xpektra.projection_operator import MoulinecSuquetProjection
from xpektra.solvers.nonlinear import ( # noqa: E402
conjugate_gradient_while,
newton_krylov_solver,
)
Let us start by defining the RVE geometry. We will consider a 2D square RVE with a circular inclusion.
N = 99
ndim = 2
length = 1
# Create phase indicator (cylinder)
x = np.linspace(-0.5, 0.5, N)
if ndim == 3:
Y, X, Z = np.meshgrid(x, x, x, indexing="ij") # (N, N, N) grid
phase = jnp.where(X**2 + Z**2 <= (0.2 / np.pi), 1.0, 0.0) # 20% vol frac
else:
X, Y = np.meshgrid(x, x, indexing="ij") # (N, N) grid
phase = jnp.where(X**2 + Y**2 <= (0.2 / np.pi), 1.0, 0.0)

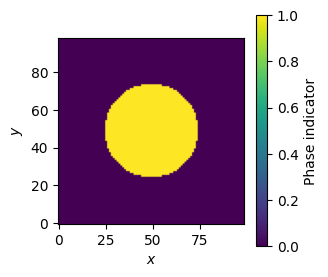

plt.figure(figsize=(3, 3))
cb = plt.imshow(phase, origin="lower")
plt.colorbar(cb, label="Phase indicator")
plt.xlabel("$x$")
plt.ylabel("$y$")
plt.show()
Based on the phase indicator, we can now define the material parameters. We will consider a linear elastic material with different properties in the inclusion and the matrix.
# Material parameters [grids of scalars, shape (N,N,N)]
lambda1, lambda2 = 10.0, 1000.0
mu1, mu2 = 0.25, 2.5
lambdas = lambda1 * (1.0 - phase) + lambda2 * phase
mu = mu1 * (1.0 - phase) + mu2 * phase
Defining TensorOperator and SpectralSpace¤
fft_transform = FFTTransform(dim=ndim)
space = SpectralSpace(
lengths=(length,) * ndim, shape=phase.shape, transform=fft_transform
)
fourier_scheme = FourierScheme(space=space)
op = SpectralOperator(
scheme=fourier_scheme,
space=space,
)
Defining the constitutive law¤
@eqx.filter_jit
def _strain_energy(eps: Array, lambdas: Array, mu: Array) -> Array:
eps_sym = 0.5 * (eps + op.trans(eps))
energy = 0.5 * jnp.multiply(lambdas, op.trace(eps_sym) ** 2) + jnp.multiply(
mu, op.trace(op.dot(eps_sym, eps_sym))
)
return energy.sum()
Defining the reference material for Moulinec-Suquet projection¤
To define the reference material, we will use the average properties of the material. We make use of jax.jacrev to compute the stress tensor as a function of the strain tensor. This way we do not need to store the reference material tensor in memory.
# Use average properties for the reference material
lambda0 = (lambda1 + lambda2) / 2.0
mu0 = (mu1 + mu2) / 2.0
material_energy = eqx.Partial(_strain_energy, lambdas=lambdas, mu=mu)
reference_energy = eqx.Partial(_strain_energy, lambdas=lambda0, mu=mu0)
compute_stress = jax.jacrev(material_energy)
compute_reference_stress = jax.jacrev(reference_energy)
To check the correctness of our reference material, we can compare the stress computed using the reference material tensor with the stress computed using the average properties.
i = jnp.eye(ndim)
I = make_field(dim=ndim, shape=(N, N), rank=2) + i # Add i to broadcast
I4 = jnp.einsum("il,jk->ijkl", i, i)
I4rt = jnp.einsum("ik,jl->ijkl", i, i)
I4s = (I4 + I4rt) / 2.0
II = jnp.einsum("...ij,...kl->...ijkl", I, I)
# Build the constant C0 reference tensor [shape (3,3,3,3)]
C0 = lambda0 * II + 2.0 * mu0 * I4s
assert np.allclose(op.ddot(C0, I), compute_reference_stress(I)), (
"Reference stress computation is incorrect"
)
We can now define the Moulinec-Suquet projection operator.
Ghat = MoulinecSuquetProjection(
space=space, lambda0=lambda0, mu0=mu0
).compute_operator()
Defining the residual and Jacobian¤
class Residual(eqx.Module):
"""A callable module that computes the residual vector."""
Ghat: Array
dofs_shape: tuple = eqx.field(static=True)
# We can even pre-define the stress function if it's always the same
# For this example, we'll keep your original `compute_stress` function
# available in the global scope.
@eqx.filter_jit
def __call__(self, eps_flat: Array, eps_macro: Array) -> Array:
"""
This makes instances of this class behave like a function.
It takes only the flattened vector of unknowns, as required by the solver.
"""
eps = eps_flat.reshape(self.dofs_shape)
sigma = compute_stress(eps)
sigma0 = compute_reference_stress(eps)
tau = sigma - sigma0
eps_fluc = op.inverse(op.ddot(self.Ghat, op.forward(tau)))
residual_field = eps - eps_macro + jnp.real(eps_fluc)
return residual_field.reshape(-1)
class Jacobian(eqx.Module):
"""A callable module that represents the Jacobian operator (tangent)."""
Ghat: Array
dofs_shape: tuple = eqx.field(static=True)
@eqx.filter_jit
def __call__(self, deps_flat: Array) -> Array:
"""
The Jacobian is a linear operator, so its __call__ method
represents the Jacobian-vector product.
"""
deps = deps_flat.reshape(self.dofs_shape)
dsigma = compute_stress(deps)
dsigma0 = compute_reference_stress(deps)
dtau = dsigma - dsigma0
jvp_field = op.inverse(op.ddot(self.Ghat, op.forward(dtau)))
jvp_field = jnp.real(jvp_field) + deps
return jvp_field.reshape(-1)
applied_strains = jnp.linspace(0, 1e-2, num=5)
eps = make_field(dim=2, shape=(N, N), rank=2)
deps = make_field(dim=2, shape=(N, N), rank=2)
eps_macro = make_field(dim=2, shape=(N, N), rank=2)
residual_fn = Residual(Ghat=Ghat, dofs_shape=eps.shape)
jacobian_fn = Jacobian(Ghat=Ghat, dofs_shape=eps.shape)
for inc, eps_avg in enumerate(applied_strains):
# solving for elasticity
eps_macro[:, :, 0, 0] = eps_avg
eps_macro[:, :, 1, 1] = eps_avg
residual_partial = eqx.Partial(residual_fn, eps_macro=eps_macro)
b = -residual_partial(eps)
# eps = eps + deps
final_state = newton_krylov_solver(
state=(deps, b, eps),
gradient=residual_partial,
jacobian=jacobian_fn,
tol=1e-8,
max_iter=20,
krylov_solver=conjugate_gradient_while,
krylov_tol=1e-8,
krylov_max_iter=20,
)
eps = final_state[2]
sig = compute_stress(final_state[2])
Converged, Residual value : 0.0
CG error = 0.12251249999999
CG error = 0.74556223960762
CG error = 3.62552279148263
CG error = 0.00000000000267
CG error = 0.00000000000001
CG error = 0.00000000000000
Converged, Residual value : 7.317105475171182e-09
CG error = 0.12251249996303
CG error = 0.74556223900860
CG error = 3.62552279079509
CG error = 0.00000000000267
CG error = 0.00000000000001
CG error = 0.00000000000000
Converged, Residual value : 7.317901040259387e-09
CG error = 0.12251249996308
CG error = 0.74556223900974
CG error = 3.62552279079039
CG error = 0.00000000000267
CG error = 0.00000000000001
CG error = 0.00000000000000
Converged, Residual value : 7.3178971612309414e-09
CG error = 0.12251249996308
CG error = 0.74556223900970
CG error = 3.62552279079037
CG error = 0.00000000000267
CG error = 0.00000000000001
CG error = 0.00000000000000
Converged, Residual value : 7.317911913185927e-09

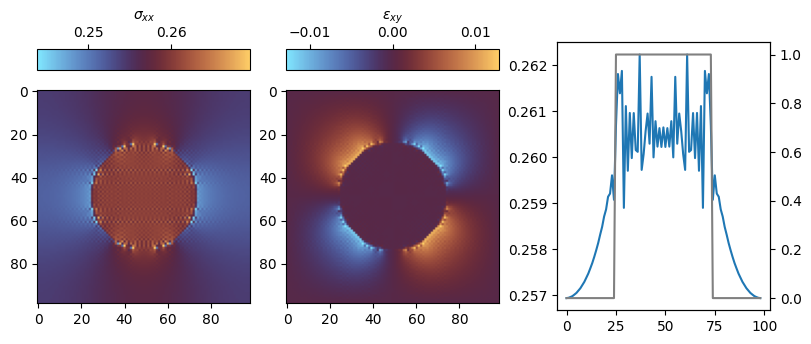

from mpl_toolkits.axes_grid1 import make_axes_locatable
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(8, 3), layout="constrained")
cb1 = ax1.imshow(sig.at[:, :, 0, 0].get(), cmap="managua_r")
divider = make_axes_locatable(ax1)
cax = divider.append_axes("top", size="10%", pad=0.2)
fig.colorbar(
cb1, cax=cax, label=r"$\sigma_{xx}$", orientation="horizontal", location="top"
)
cb2 = ax2.imshow(eps.at[:, :, 0, 1].get(), cmap="managua_r")
divider = make_axes_locatable(ax2)
cax = divider.append_axes("top", size="10%", pad=0.2)
fig.colorbar(
cb2, cax=cax, label=r"$\varepsilon_{xy}$", orientation="horizontal", location="top"
)
ax3.plot(sig.at[:, :, 0, 0].get()[:, int(N / 2)])
ax_twin = ax3.twinx()
ax_twin.plot(phase[int(N / 2), :], color="gray")
plt.show()
