3D Multi-phase Material¤
import jax
jax.config.update("jax_enable_x64", True) # use double-precision
jax.config.update("jax_platforms", "cpu")
jax.config.update("jax_persistent_cache_min_compile_time_secs", 0)
import jax.numpy as jnp
from jax import Array
import numpy as np
In this example, we solve a linear elasticity problem of a multiphase material in 3D.
from xpektra import (
SpectralSpace,
TensorOperator,
make_field,
)
from xpektra.scheme import RotatedDifference, Fourier
from xpektra.projection_operator import GalerkinProjection
from xpektra.solvers.nonlinear import ( # noqa: E402
conjugate_gradient_while,
newton_krylov_solver,
)
import equinox as eqx
from scipy.spatial.distance import cdist
def generate_multiphase_material_3d(
size, num_phases=5, num_seeds=None, random_state=None
):
"""
Generate a 3D multiphase material using Voronoi tessellation.
Parameters:
-----------
size : int or tuple of 3 ints
Size of the 3D array. If int, creates a cubic array of size (size, size, size).
If tuple, specifies (nx, ny, nz) dimensions.
num_phases : int, default=5
Number of different phases (materials) in the microstructure.
num_seeds : int, optional
Number of Voronoi seed points. If None, defaults to num_phases * 3.
random_state : int, optional
Random seed for reproducibility.
Returns:
--------
material : numpy.ndarray
3D array with values from 0 to 1, where each phase is represented by
values in the range [i/num_phases, (i+1)/num_phases) for phase i.
seed_points : numpy.ndarray
Array of seed points used for Voronoi tessellation.
"""
if random_state is not None:
np.random.seed(random_state)
# Handle size parameter
if isinstance(size, int):
nx, ny, nz = size, size, size
else:
nx, ny, nz = size
# Default number of seeds
if num_seeds is None:
num_seeds = num_phases * 3
# Generate random seed points in 3D space
seed_points = np.random.rand(num_seeds, 3)
seed_points[:, 0] *= nx
seed_points[:, 1] *= ny
seed_points[:, 2] *= nz
# Assign each seed to a phase
seed_phases = np.random.randint(0, num_phases, num_seeds)
# Create coordinate grids
x, y, z = np.meshgrid(np.arange(nx), np.arange(ny), np.arange(nz), indexing="ij")
grid_points = np.column_stack([x.ravel(), y.ravel(), z.ravel()])
# Calculate distances from each grid point to all seed points
distances = cdist(grid_points, seed_points)
# Find closest seed for each grid point
closest_seeds = np.argmin(distances, axis=1)
# Assign phases based on closest seed
phase_array = seed_phases[closest_seeds].reshape(nx, ny, nz)
# Convert to values between 0 and 1
material = phase_array.astype(float) / num_phases + np.random.rand(nx, ny, nz) / (
num_phases * 10
)
material = np.clip(material, 0, 1)
return material, seed_points
We use the generate_multiphase_material_3d function to generate a 3D multiphase material. The function returns the material and the seed points.
N = 31
ndim = 3
length = 1
structure, seeds = generate_multiphase_material_3d(
size=N, num_phases=5, num_seeds=15, random_state=42
)
To simplify the execution of the code, we define a ElasticityOperator class that contains the Fourier-Galerkin operator, the spatial operators, the tensor operators, and the FFT and IFFT operators. The __init__ method initializes the operator and the __call__ method computes the stresses in the real space given as
$$ \mathcal{F}^{-1} \left( \mathbb{G}:\mathcal{F}(\sigma) \right)
$$
We define the grid size and the length of the RVE and construct the structure of the RVE.
tensor = TensorOperator(dim=ndim)
space = SpectralSpace(size=N, dim=ndim, length=length)
Next, we define the material parameters.
λ0 = structure.copy()
μ0 = structure.copy()
Ghat = GalerkinProjection(scheme=RotatedDifference(space=space)).compute_operator()
dofs_shape = make_field(dim=ndim, N=N, rank=2).shape
The linear elasticity strain energy is given as $$ W = \frac{1}{2} \int_{\Omega} (\lambda \text{tr}(\epsilon)^2+ \mu \text{tr}(\epsilon : \epsilon ) ) d\Omega $$
We define a python function to compute the strain energy and then use the jax.jacrev function to compute the stress tensor.
@eqx.filter_jit
def strain_energy(eps_flat: Array) -> float:
eps = eps_flat.reshape(dofs_shape)
eps_sym = 0.5 * (eps + tensor.trans(eps))
energy = 0.5 * jnp.multiply(λ0, tensor.trace(eps_sym) ** 2) + jnp.multiply(
μ0, tensor.trace(tensor.dot(eps_sym, eps_sym))
)
return energy.sum()
compute_stress = jax.jacrev(strain_energy)
class Residual(eqx.Module):
"""A callable module that computes the residual vector."""
Ghat: Array
space: SpectralSpace = eqx.field(static=True)
tensor_op: TensorOperator = eqx.field(static=True)
dofs_shape: tuple = eqx.field(static=True)
# We can even pre-define the stress function if it's always the same
# For this example, we'll keep your original `compute_stress` function
# available in the global scope.
@eqx.filter_jit
def __call__(self, eps_flat: Array) -> Array:
"""
This makes instances of this class behave like a function.
It takes only the flattened vector of unknowns, as required by the solver.
"""
# eps = eps_flat.reshape(self.dofs_shape)
sigma = compute_stress(eps_flat) # Assumes compute_stress is defined elsewhere
residual_field = self.space.ifft(
self.tensor_op.ddot(
self.Ghat, self.space.fft(sigma.reshape(self.dofs_shape))
)
)
return jnp.real(residual_field).reshape(-1)
class Jacobian(eqx.Module):
"""A callable module that represents the Jacobian operator (tangent)."""
Ghat: Array
space: SpectralSpace = eqx.field(static=True)
tensor_op: TensorOperator = eqx.field(static=True)
dofs_shape: tuple = eqx.field(static=True)
@eqx.filter_jit
def __call__(self, deps_flat: Array) -> Array:
"""
The Jacobian is a linear operator, so its __call__ method
represents the Jacobian-vector product.
"""
# deps = deps_flat.reshape(self.dofs_shape)
# Assuming linear elasticity, the tangent is the same as the residual operator
dsigma = compute_stress(deps_flat)
jvp_field = self.space.ifft(
self.tensor_op.ddot(
self.Ghat, self.space.fft(dsigma.reshape(self.dofs_shape))
)
)
return jnp.real(jvp_field).reshape(-1)
eps = make_field(dim=ndim, N=N, rank=2)
residual_fn = Residual(Ghat=Ghat, space=space, tensor_op=tensor, dofs_shape=eps.shape)
jacobian_fn = Jacobian(Ghat=Ghat, space=space, tensor_op=tensor, dofs_shape=eps.shape)
deps = make_field(dim=ndim, N=N, rank=2)
applied_strains = jnp.diff(jnp.linspace(0, 2e-2, num=2))
for inc, deps_avg in enumerate(applied_strains):
# solving for elasticity
deps[:, :, 0, 0] = deps_avg
b = -residual_fn(deps)
eps = eps + deps
final_state = newton_krylov_solver(
state=(deps, b, eps),
gradient=residual_fn,
jacobian=jacobian_fn,
tol=1e-6,
max_iter=20,
krylov_solver=conjugate_gradient_while,
krylov_tol=1e-6,
krylov_max_iter=20,
)
eps = final_state[2]
print("step", inc, "time", inc)
sig = compute_stress(eps).reshape(dofs_shape)
CG error = 0.22234152087832
CG error = 0.00000045775788
CG error = 0.00000001828671
CG error = 0.00000000343622
CG error = 0.00000000036042
CG error = 0.00000000009831
CG error = 0.00000000001393
CG error = 0.00000000000470
Converged, Residual value : 9.766911206116589e-07
step 0 time 0

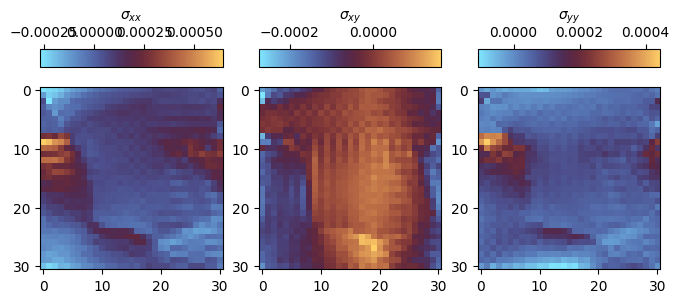

Lets us now plot the stress tensor along the x-plane.
import matplotlib.pyplot as plt # noqa: E402
from mpl_toolkits.axes_grid1 import make_axes_locatable
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(8, 4))
cax1 = ax1.imshow(sig.at[:, :, int(N / 2), 0, 0].get(), cmap="managua_r")
divider = make_axes_locatable(ax1)
cax = divider.append_axes("top", size="10%", pad=0.2)
fig.colorbar(cax1, cax=cax, label=r"$\sigma_{xx}$", orientation="horizontal", location="top")
cax2 = ax2.imshow(sig.at[:, :, int(N / 2), 0, 1].get(), cmap="managua_r")
divider = make_axes_locatable(ax2)
cax = divider.append_axes("top", size="10%", pad=0.2)
fig.colorbar(cax2, cax=cax, label=r"$\sigma_{xy}$", orientation="horizontal", location="top")
cax3 = ax3.imshow(sig.at[:, :, int(N / 2), 1, 1].get(), cmap="managua_r")
divider = make_axes_locatable(ax3)
cax = divider.append_axes("top", size="10%", pad=0.2)
fig.colorbar(cax3, cax=cax, label=r"$\sigma_{yy}$", orientation="horizontal", location="top")
plt.show()
